TA2000

Hybrid configuration: 4 conventional zones expandable to 12 + 1 × analog-addressable loop

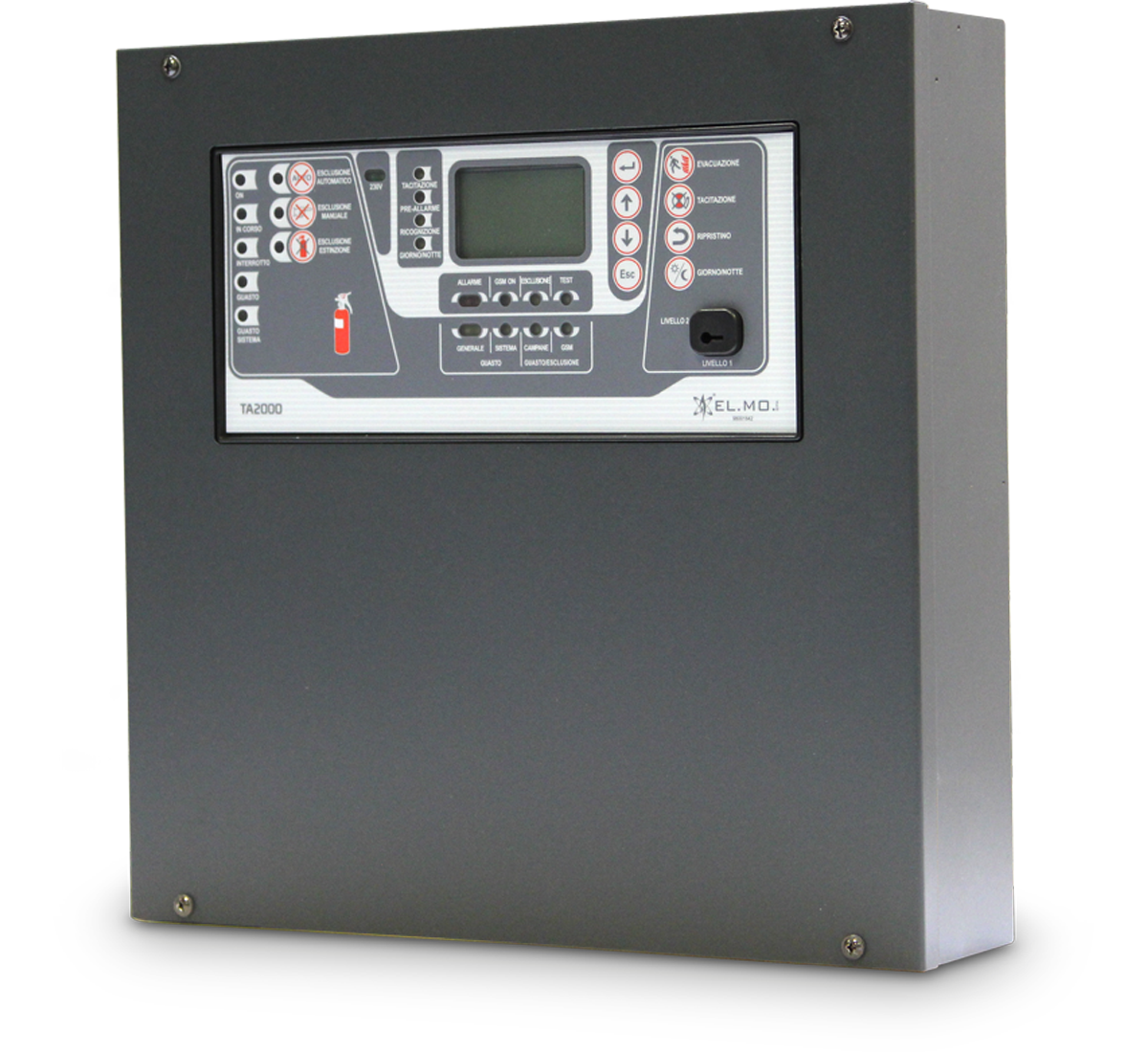

TA2000 is a conventional fire alarm control panel capable of meeting any need thanks to its innovative hybrid structure. It can simultaneously manage 4 conventional zones (expandable to 12) and 1 FYRA addressable analog loop. Its capabilities can be expanded with optional modules: the MDGSME GSM module or MD4GE LTE module for sending alarm and status SMS messages or interfacing with the e-Connect platform, the EXTING module for interfacing with extinguishing systems, and the MDLAN LAN module for integration with the GLOBALPRO supervision software and interfacing with the e-Connect platform. TA2000 delivers power and cutting-edge technology and is designed for installation in any type of context, such as banking, industrial, commercial, residential, and civil installations. The intuitive display ensures easy and immediate interaction with the control panel. When combined with a CCTV system based on DVR/NVR from the e‑Vision PRO V 1.2.6 line and higher, it is possible to take advantage of the InstaVision video verification function. TA2000 is certified CPR 305/2011, EN 54‑2, EN 54- 4, EN 54‑13, EN 54‑21 (with optional 4G MD4GE and LAN MDLAN modules) and EN 12094‑1 (with optional EXTING extinguishing module).

Features


Maximum loop number 1
Conventional areas 4
Product type Hybrid

Technical details


Versions
Default ICCTA0103800 - ICCTA0100300 - ICCTA0100301 - ICCTA0101500 - ICCTA0101501 - ICCTA0102300 - ICCTA0102301 - ICCTA0102700 - ICCTA0102701 - ICCTA0102800 - ICCTA0102801 - ICCTA0103801 - ICCTA0104000 - ICCTA0104001
Conventional zones 4 zones

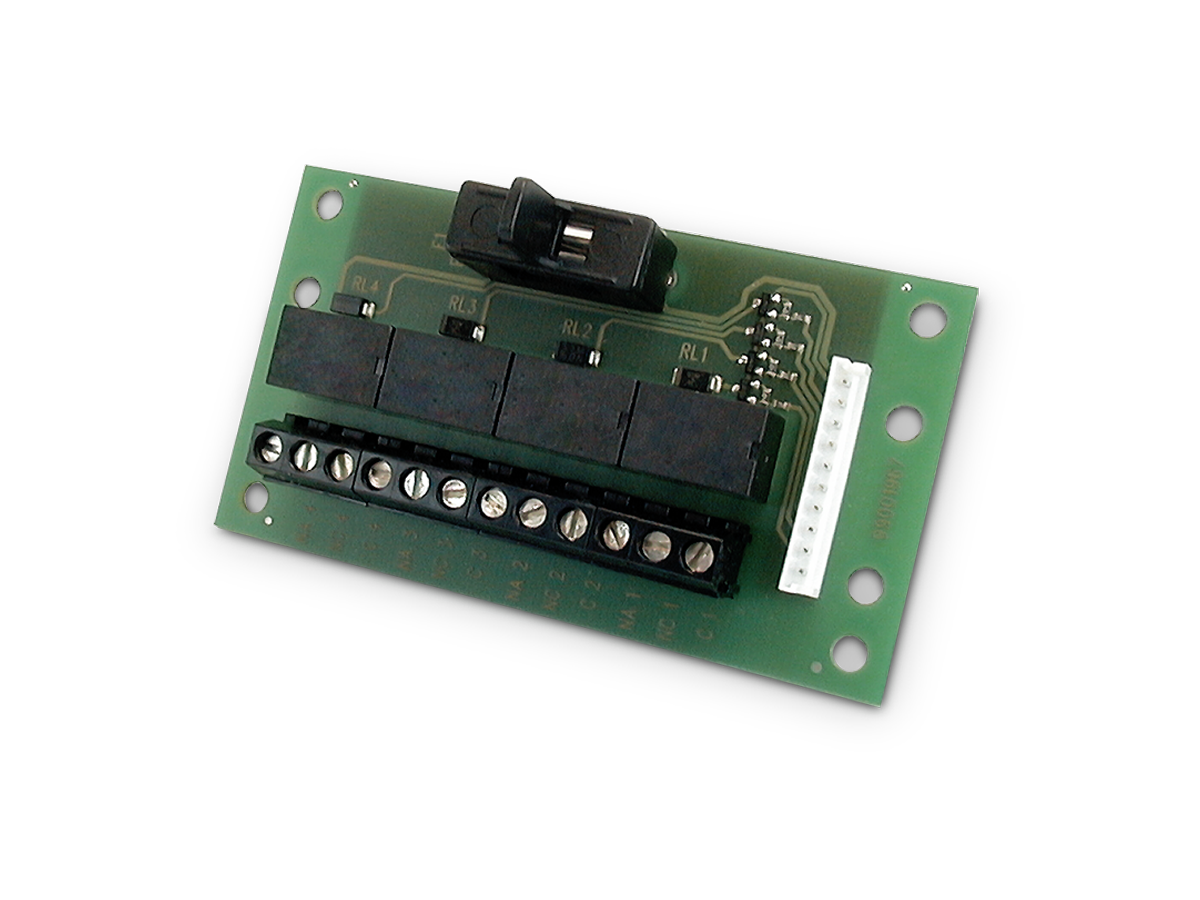

Conventional expansion Up to 12 conventional zones with 1 TAEXP10 expansion card

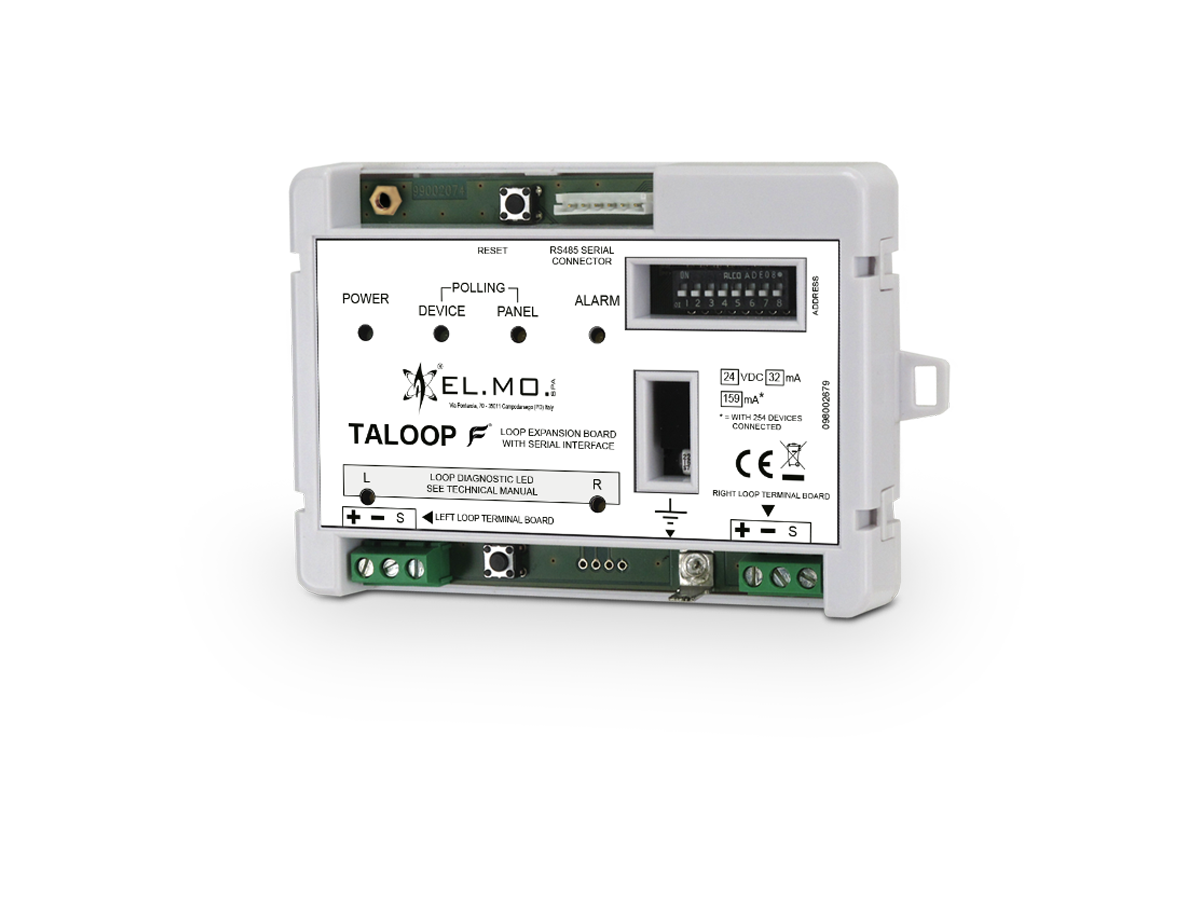

Hybrid expansion Up to 12 conventional zones with 1 TAEXP10 expansion board (optional) + 1 FYRA addressable analog loop via TALOOP module (optional)
Dedicated conventional button zones 1
Outputs 1 fault relay output
1 pre-alarm relay output
2 auxiliary relay outputs
1 supervised alarm output
User interface Color graphic display, LED indicators, buttons

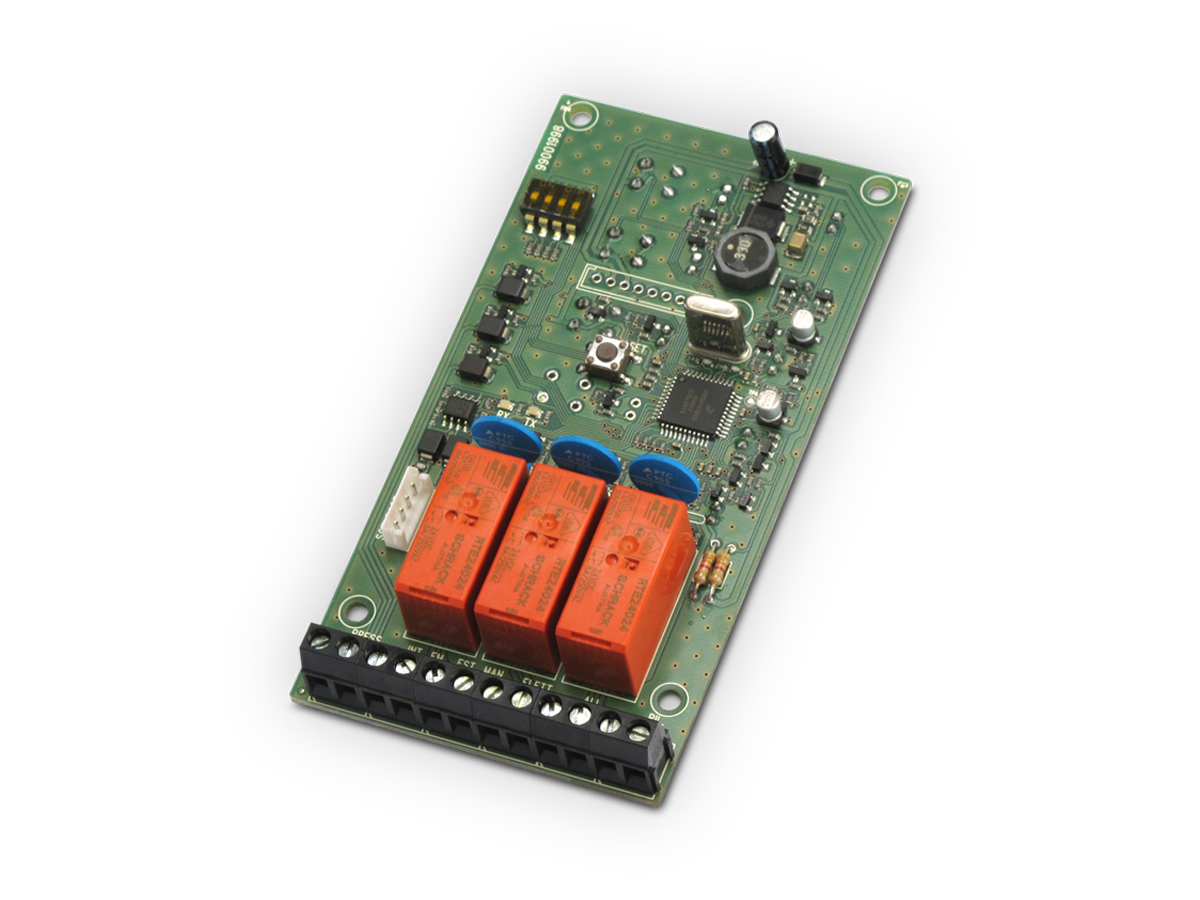

Optional EXTING module
Integrated interfaces 1 × MINI‑DIN for configuration via programming software

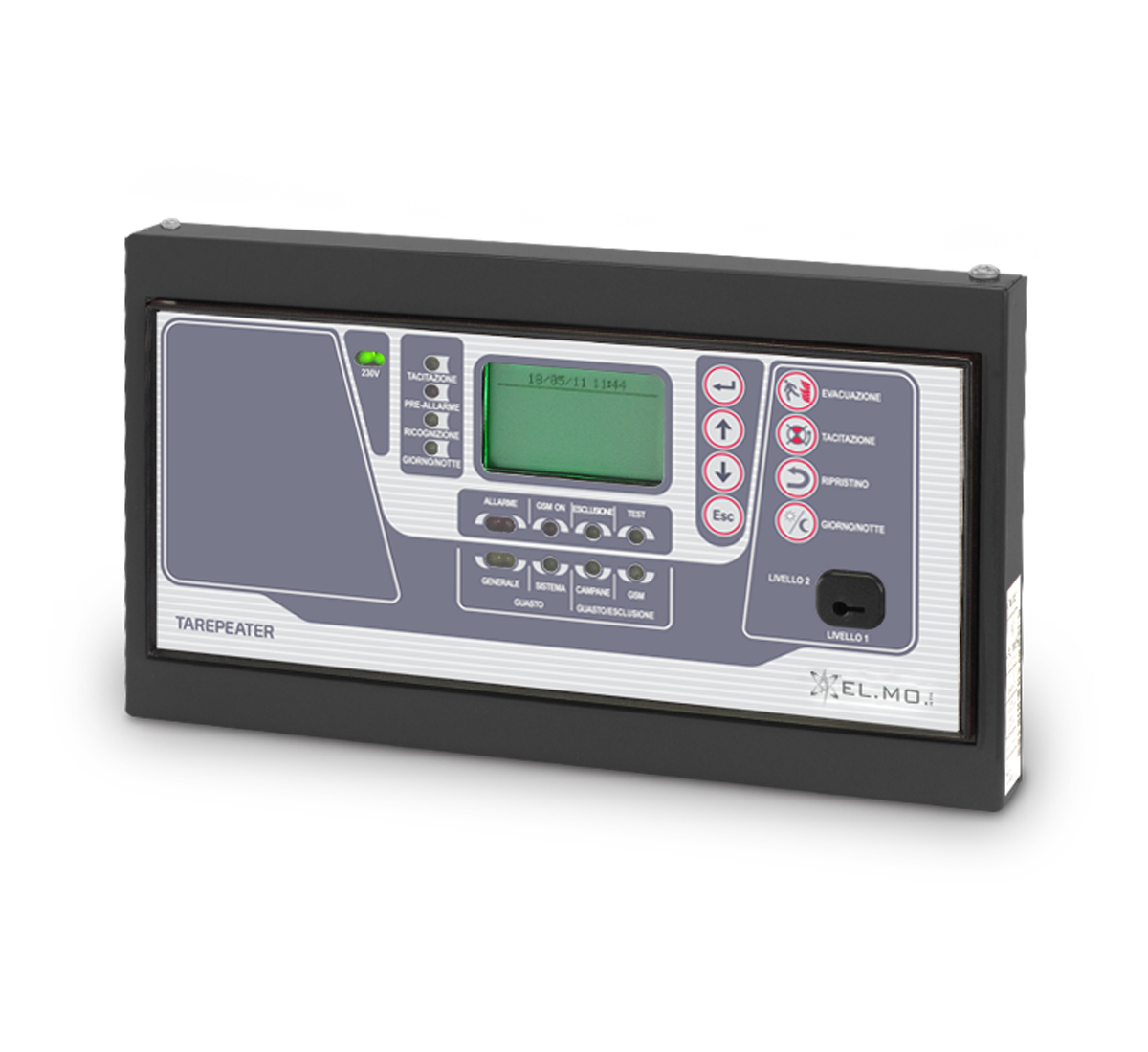

1 RS‑485 serial line for the connection of up to 2 TAREPEATER repeater panels
Supervision software GLOBALPRO
LAN connection Optional MDLAN Ethernet module for an Ethernet connection, interfacing to the e‑Connect platform and integration with the GLOBALPRO supervision software

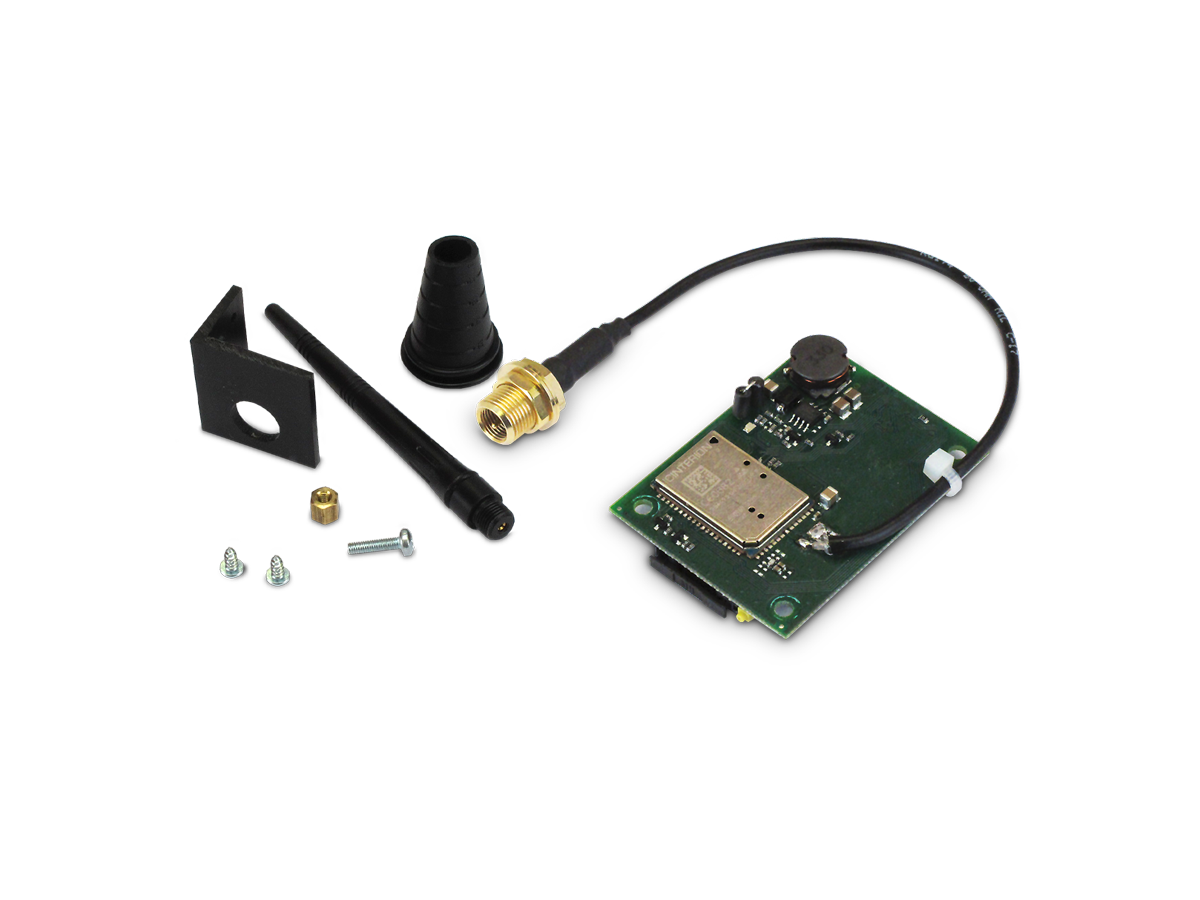

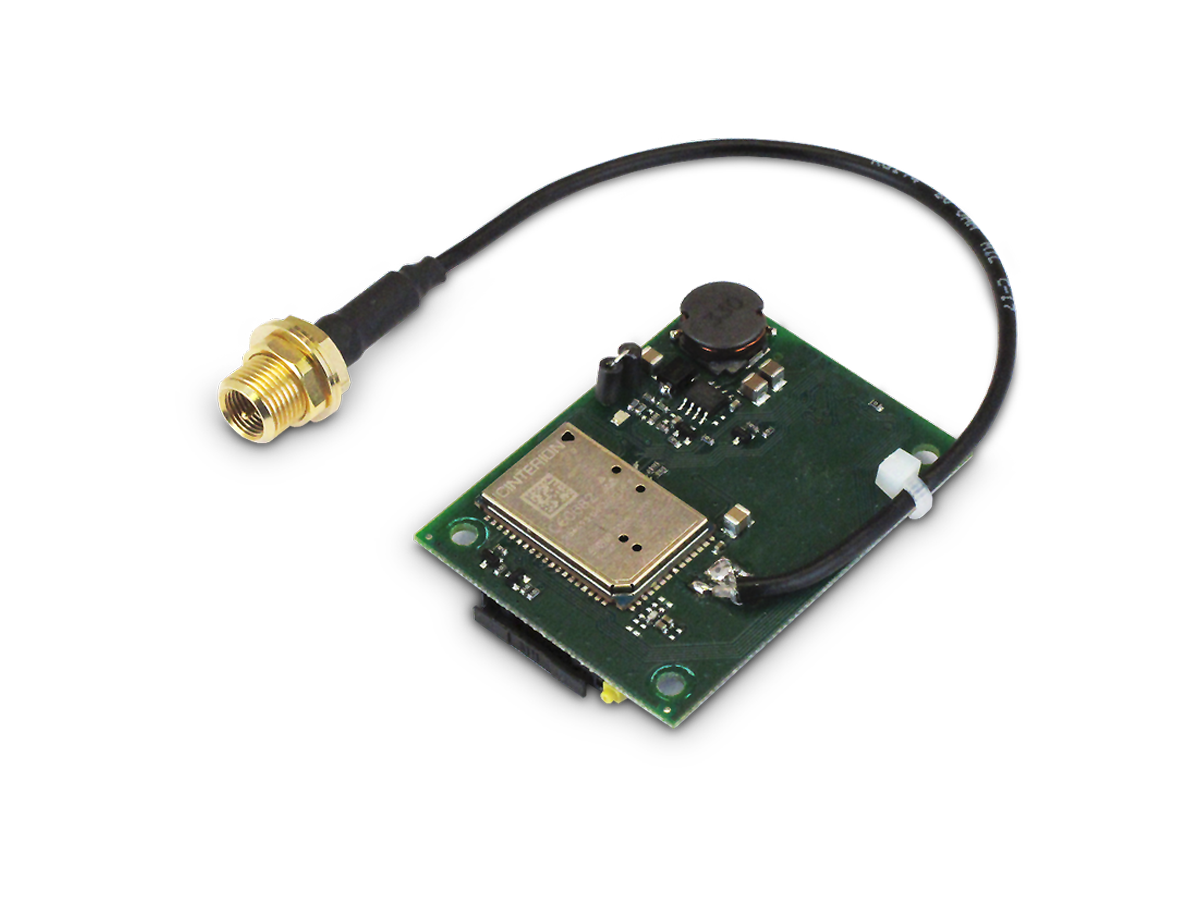

GSM connection GSM module MDGSME for sending alarm signals / control panel status via SMS and interfacing with the e‑Connect platform

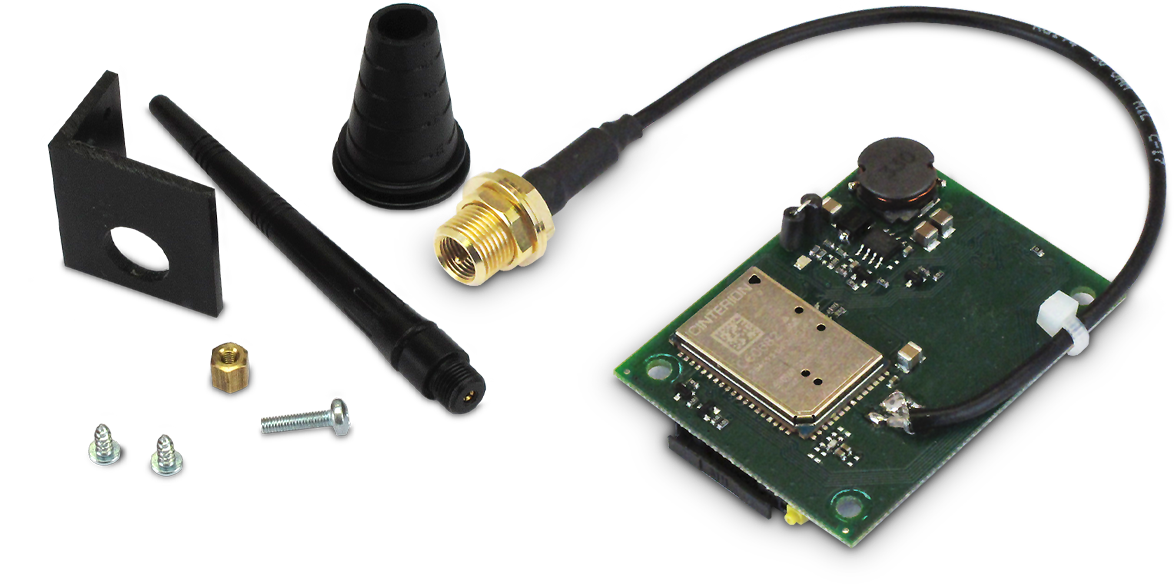

LTE connection MD4GE for sending alarm / control panel status reports via SMS, interfacing to the e-Connect platform and connecting to security institutes via the SIA IP Reporting protocol (TCP-2007) (in combination with MDLAN)
Degree of protection IP30
Dimensions L 390 × H 390 × D 99 mm
