Wireless Intrusion Detection
MDGSME
One line dual-band GSM/GPRS module with external antenna connector.
MDGSME One is a dual-band GSM/GPRS dialer module designed for the VIDOMO2K, PREGIO, and PROXIMA intrusion control panels. It allows the control panel to be connected to e-Connect, voice or SMS alarm messages to be sent, control the control panel via SMS, and remote monitoring of the system. The module is equipped with a connector for connecting an external antenna to the control panels (not included).
Features
| Interface | GSM |
| Product type | Of communication |
Technical details
| Versions |
Default
AWMDCCG01900
-
AWMDCCG00800
|
| Compatibility | VIDOMO2K intrusion detection, PREGIO series, PROXIMA series |
| TACÓRA series fire detection | |
| Functions | Allows the connection of the ae‑Connect control panel, the sending of alarm SMS messages or status reports |

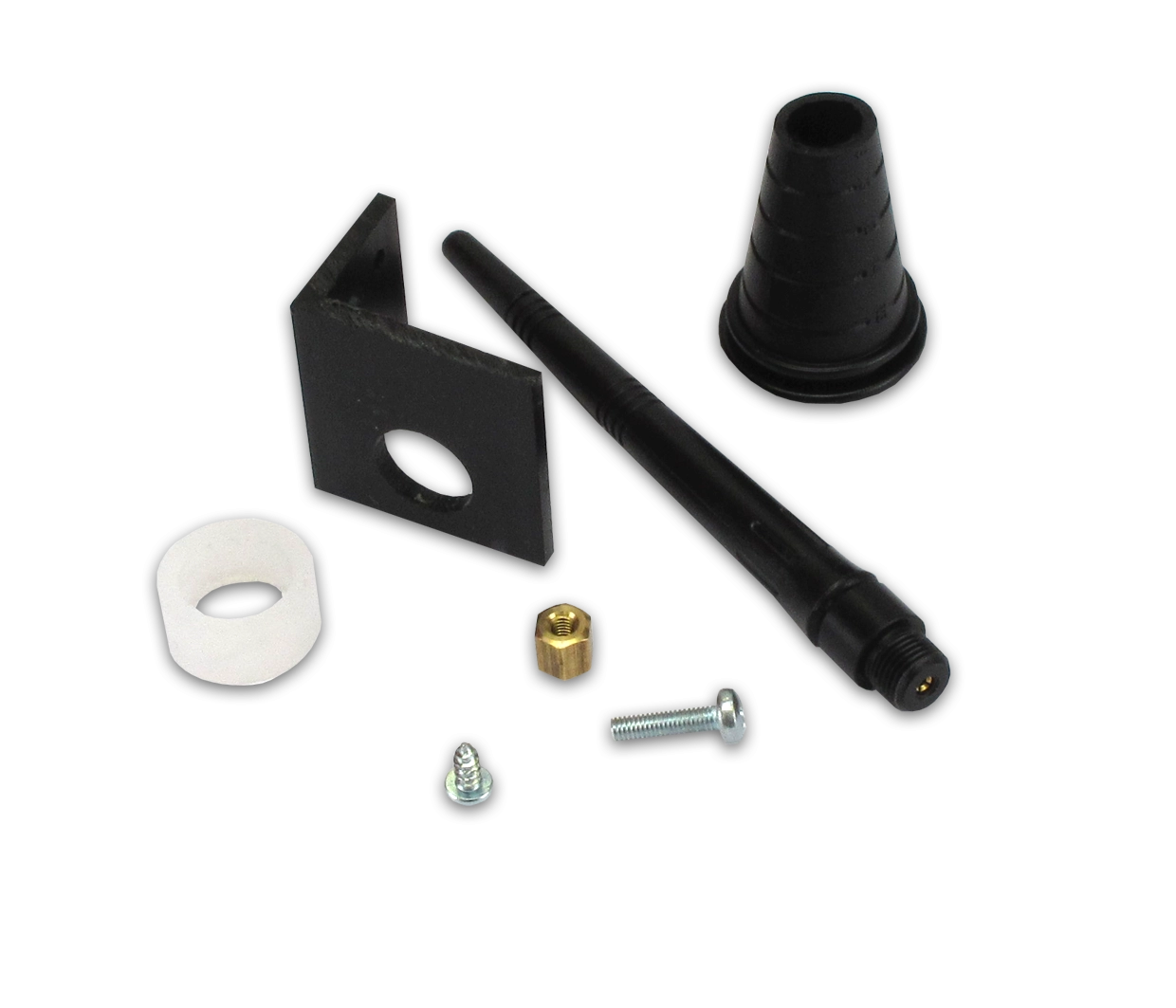

| Compatible antenna kits | GSMEXA15, GSMEXA2, GSMACI (for TACÓRA control panels) |
| Power supply | 12 Vdc or 24 Vdc from central unit |
| Maximum current consumption | 220 mA |
| Dimensions | L 63 × H 48 × D 14 mm |
| Weight | 75 g (packaged product) |
| Certifications | In the intrusion detection field IMQ‑Allarme EN 50136‑2, EN 50131‑10 grade 3, environmental class II, in the fire detection field CPR 305/2011 EN 54‑13, EN 54‑21 |
Technical documentation
Select the type of documentation you want to see
Available Documents: 10
