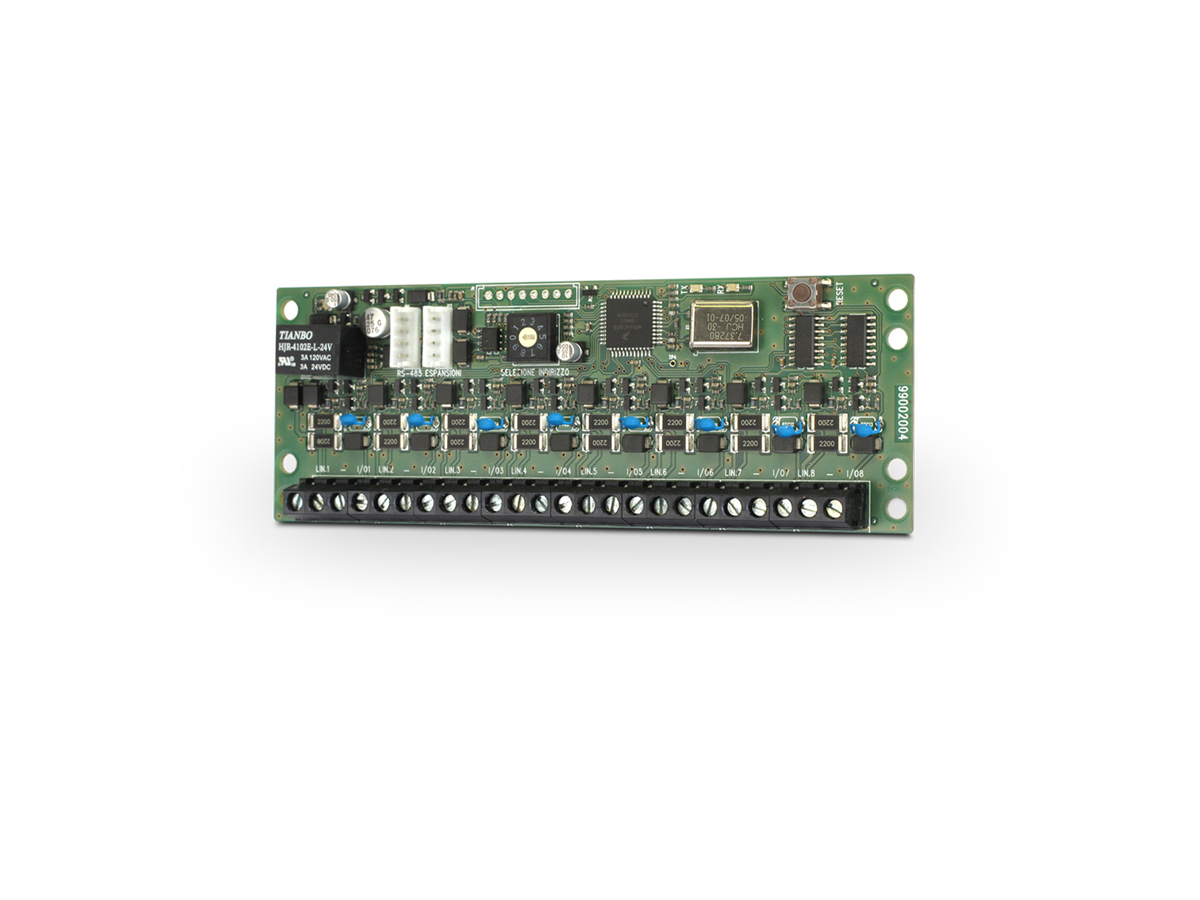

TAEXP10
Expansion module for up to 8 conventional zones
TAEXP10 is an expansion card, which can be installed inside the TA2000 control panel, capable of adding an additional 8 conventional zones to the 4 provided by the control panel. TAEXP10 is a CPR 305/2011 (formerly CPD 89/106/EEC certification) EN 54-2 certified accessory in combination with the TACÓRA system.
Features
| Interface | None |
| Product type | Conventional expansion |
Technical details
| Versions |
Default
ACATAMC00100
-
ACATAMC00400
|
| Compatibility | TA2000 Control Units |
| Inputs | 8 zone inputs with balanced line and current absorption |
| Outputs | 8 open collector zone outputs |
| Dimensions | L 140 × H 50 mm |
| Weight | 120 g |
| Power consumption at supply voltage | At rest (NC lines) 11 mA |
| At rest (balanced lines) 50 mA | |
| Maximum consumption 165 mA | |
| Versions | Available in intrinsically safe version for ATEX detection (ACATAMC00400) |
| Compatible with intrinsically safe TA2000 control panel | |
| Requires 2× Zener barriers model Z928 | |
| Certifications | CPR 305/2011 EN 54‑2, EN 54‑13 in combination with the TACÓRA system |
| Available in intrinsically safe version for ATEX detection (ACATAMC00400) |
