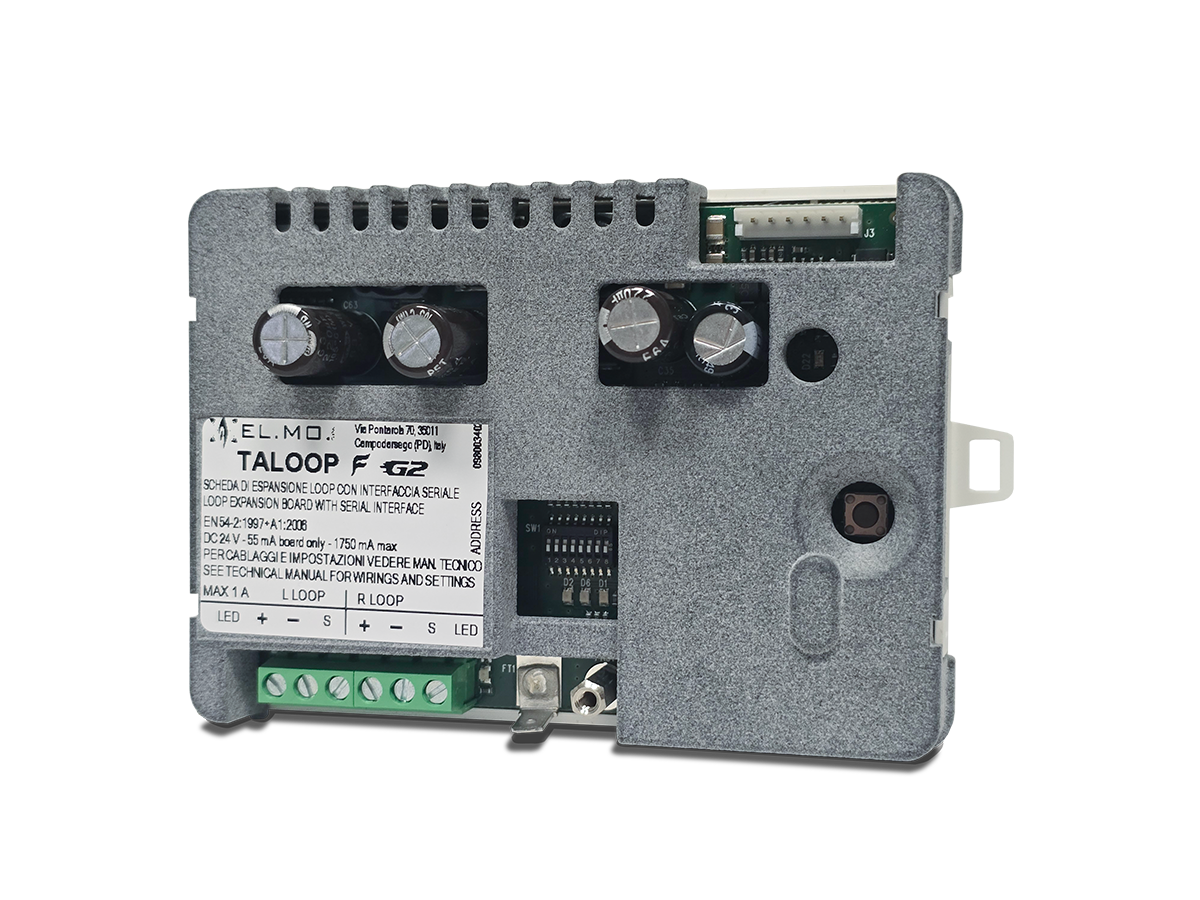

TALOOP
Expansion module for up to 254 devices with FYRA G2 loop that can be inserted inside the control panel
TALOOP is a FYRA G2 loop expansion card that can be inserted into the TA2000 and TA4000 fire control panels. It allows the connection of up to 254 addressable analog devices per loop. This transforms the TA2000 and TA4000 into advanced hybrid conventional/analog-addressable fire detection panels. The addition of a loop module expands the TA2000 control panel by an additional 32 zones and the TA4000 control panel by 40 zones. TALOOP is a CPR 305/2011 EN 54-2 certified accessory for use with the TACÓRA system.
Features
| Interface | None |
| Product type | Loop |
Technical details
| Versions |
Default
ACATAML00700
-
ACATAML00500
-
ACATAML00600
|
| Version | G2 |
| Compatibility | TA2000 and TA4000 control units |
| Maximum current supplied to the loop | 1A |
| Dimensions | L 129 × H 80 × D 20 mm |
| Weight | 94 g |
| Current consumption at rest | 55 mA |
| Current draw with 254 optical or smoke sensors connected | 207 mA in 24 Vdc |
| Maximum current consumption | 1750 mA at 24 Vdc |
| Power supply | 24 Vdc from the control unit |
| Certifications | CPR 305/2011 EN 54‑2, EN 54‑13 in combination with the TACÓRA system |
