Wireless Intrusion Detection

VIDOMO2K

NG‑TRX intrusion control panel, NEXT version, with 64 wired/wireless inputs and ULTRABUS interface

VIDOMO2K (NEXT version - CWVIL0103200) is a 64-input wireless/wired intrusion control panel based on NG‑TRX bidirectional wireless technology with an operating range of up to 2 km. NG‑TRX technology allows for even greater security thanks to communication on three different frequencies, protected by an advanced cryptographic algorithm, while also ensuring high resistance to jamming. Each device also features an individual rolling code and a unique cryptographic key. NG‑TRX devices are configurable via software, even from a remote PC via LAN/WAN, simplifying installation and maintenance. Furthermore, field devices are able to optimize the intensity of the radio communication signal to the control panel in order to increase battery life. Thanks to the serial interface, it is able to integrate a variety of devices on an RS-485 bus, including sensors, sirens, concentrators, and keypads. Finally, you can customize the control panel according to your needs, choosing, for example, GSM, 4G, Wi-Fi, LAN, NTP, and GPS modules for external communication, including the e-Connect platform. VIDOMO2K is IMQ-Allarme certified EN 50131 grade 2, environmental class II.

Features

Connection	Wireless
D-Pulse	No
Grade EN50131	IMQ Grade 2 Certificate
Container	Plastic
Scope	Residential, Small Business and Retail
Integrated keyboard	Yes
On-board wired inputs	8 (16 splits)
Maximum number of entries	64
Line	Holiday

Technical details

Versions	Default CWVIL0103200 - CWVIL0101700 - CWVIL0101701 - CWVIL0101704 - CWVIL0101900 - CWVIL0101901 - CWVIL0101904 - CWVIL0101905 - CWVIL0101907 - CWVIL0101909 - CWVIL0102900 - CWVIL0103204
Compatibility	NG‑TRX wireless devices
	Wired devices
	ULTRABUS devices
On-board inputs	8 on-board wired inputs or 16 with split function (reducing the wireless inputs) definable as radio or as NO, NC, balanced, split, extended split, triple balanced
On-board inputs	Expandable using the RIVER series concentrators via ULTRABUS
Maximum number of supported inputs	64 freely configurable as wireless NG‑TRX, wired or ULTRABUS
Maximum number of supported inputs	The wireless NG‑TRX inputs can be managed by the on-board radio module and/or via RIVERRFPLUS concentrators, GATEWAY2K via ULTRABUS
On-board outputs	Connector with 8 outputs for ETRREL modules
	12 V sensor power output protected by fuse
	Alarm relay output with clean C‑NO‑NC contacts with a capacity of 3 A at 24 Vac programmable
	Maximum number of outputs supported 64
Compatible optional modules	MDGSMI/MDGSME (GSM/GPRS module)
	MD4GI/MD4GE (4G LTE module)

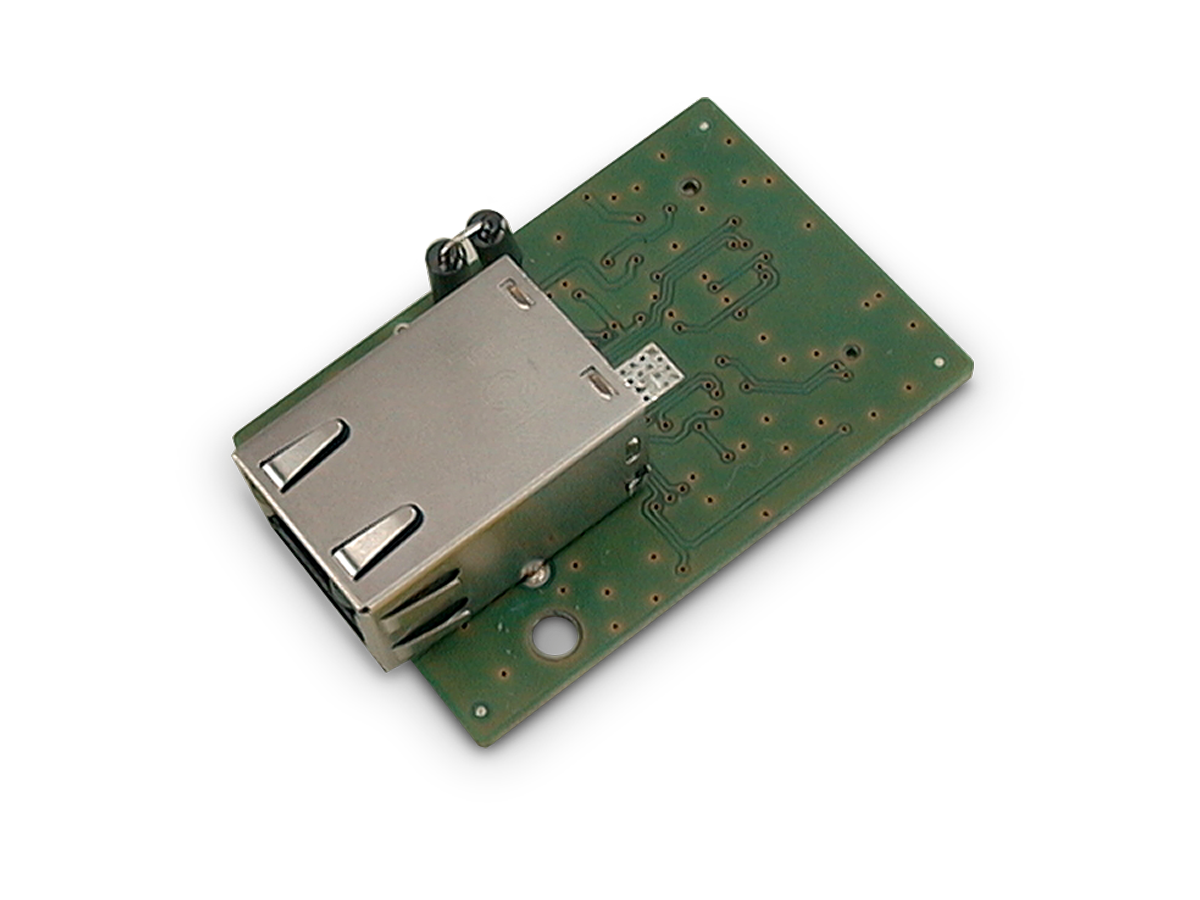

	MDLAN (LAN module)

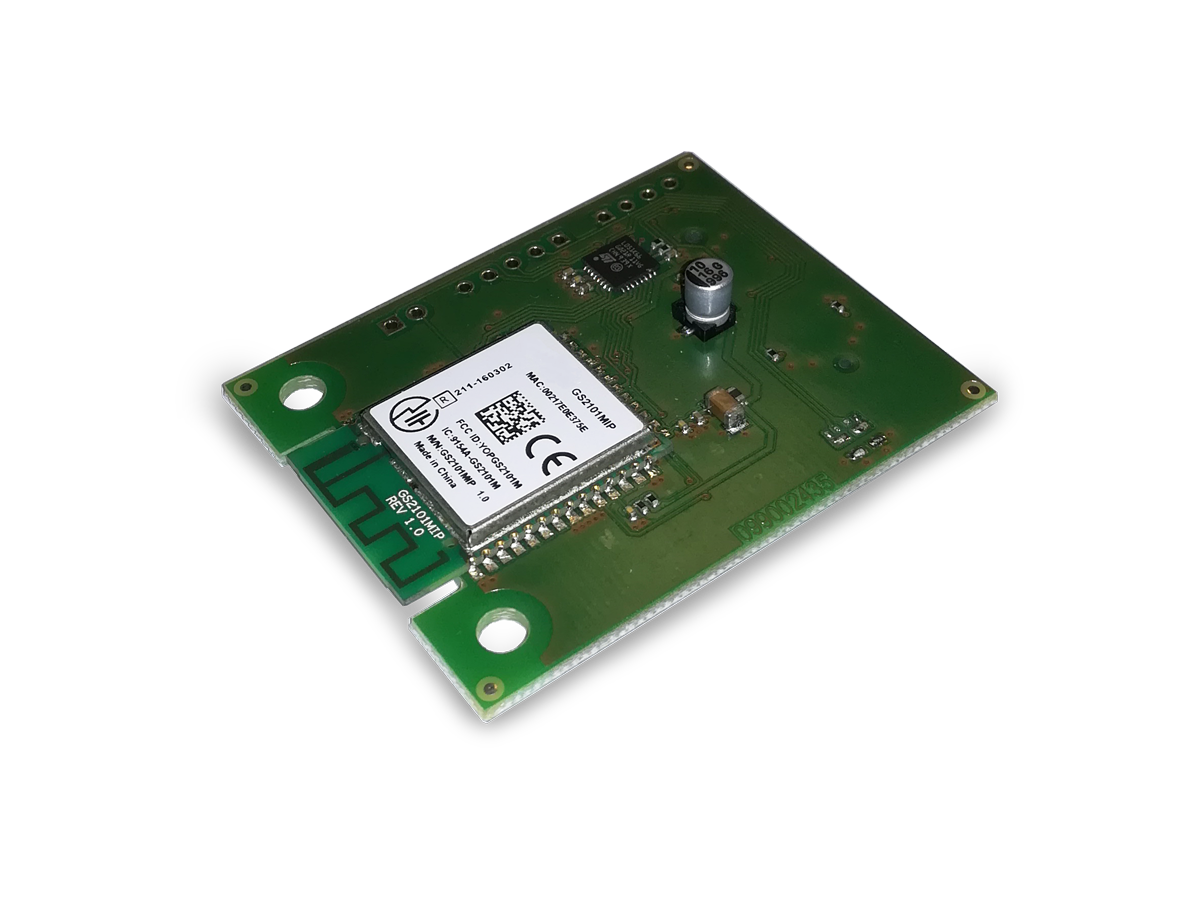

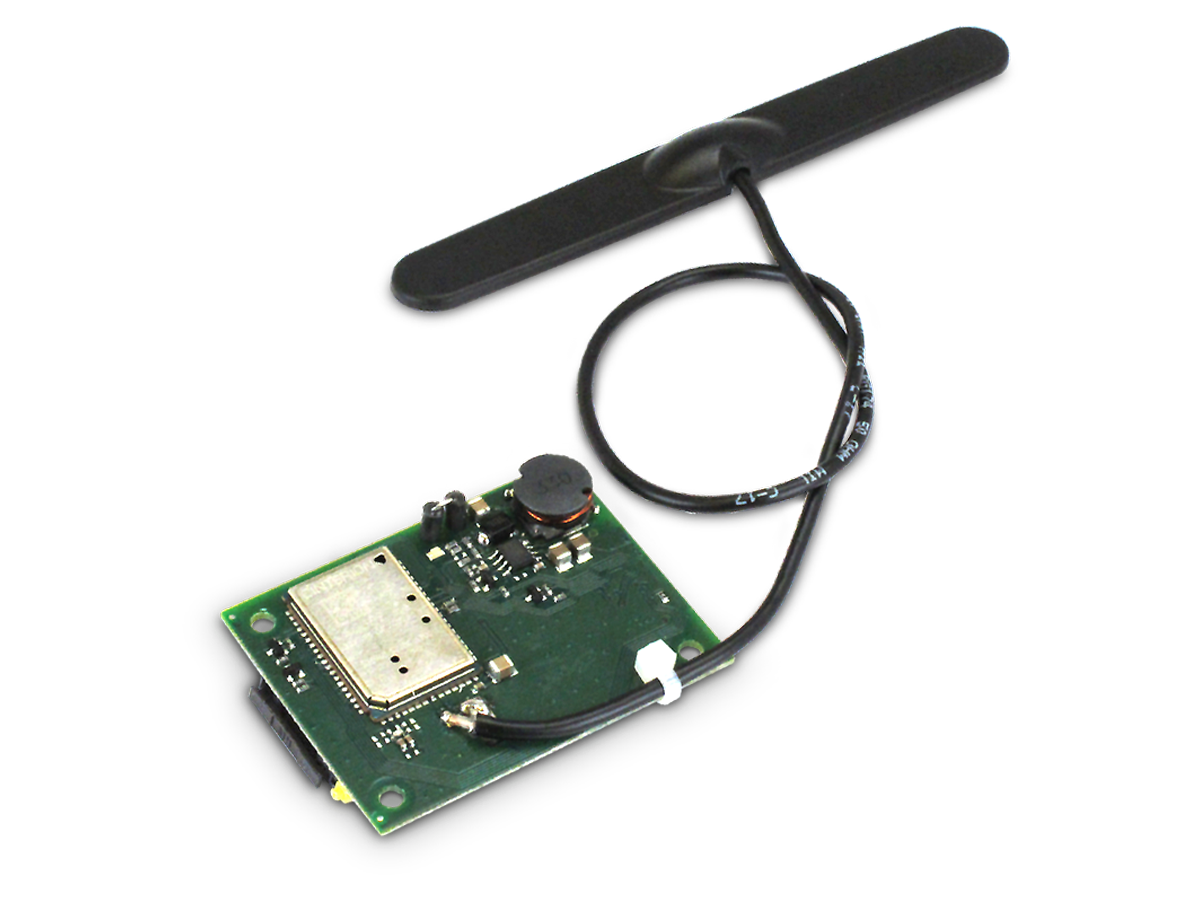

	MDWIFI (Wi-Fi module)
Control devices	16 control devices on ULTRABUS of which max 4 advanced keypads per control unit to be chosen between KARMA and AURA
Integrated interfaces	1 × ULTRABUS RS‑485 for connecting compatible devices
Connectors	MINIDIN for programming, remote control (requires CP8/SER2 cable), connection to ETREIB interface via CP8/SER2 cable for connection to systems on konnex standard
	MINIUSB for programming, remote control, firmware update in simplified mode
	Connector for remote proximity readers model I66
Functions	Built-in temperature sensor with thermostat function
	Optional MDTEMP wireless temperature sensor
	Daily/weekly chronothermostat function with boiler block detection
