VICOMPACT2K

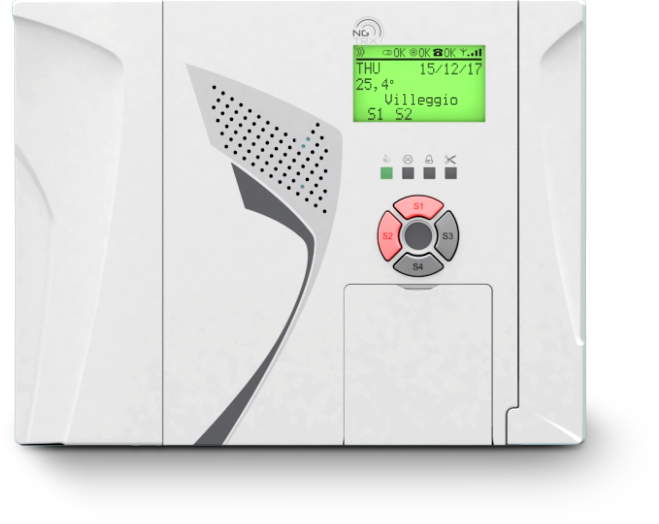

VICOMPACT2K NEXT version control panel with integrated 4G One line module

VICOMPACT2K (CWVIL0103300) is a Next version wireless intrusion control panel with a total of 48 onboard radio inputs and an integrated 4G module. Based on NG-TRX bidirectional wireless technology, it ensures an operational range of up to 2 km. NG-TRX technology allows for even greater security thanks to communication on three different frequencies, protected by an advanced cryptographic algorithm, while also ensuring high resistance to jamming. Each device also features an individual rolling code and a unique cryptographic key. The 4G module enables external communication and, through the e-Connect platform, allows you to manage the system in complete security from anywhere and at any time via smartphone, tablet, and PC. Finally, you can customize the control panel according to your needs, for example by choosing LAN and Wi-Fi modules for external communication, including the e-Connect platform. VICOMPACT2K is IMQ-Allarme EN 50131 grade 2, environmental class II certified.

Features

Connection	Wireless
D-Pulse	No
Grade EN50131	IMQ Grade 2 Certificate
On-board wired inputs	2
Container	Plastic
Maximum number of entries	32
Scope	Residential, Small Business and Retail
Integrated keyboard	Yes
Line	Holiday

Technical details

Versions	Default CWVIL0103500 - CWVIL0101601 - CWVIL0101800 - CWVIL0101801 - CWVIL0101802 - CWVIL0101804 - CWVIL0101805 - CWVIL0102400 - CWVIL0102401 - CWVIL0102404 - CWVIL0102405 - CWVIL0102406 - CWVIL0102407 - CWVIL0102600 - CWVIL0102700 - CWVIL0102701 - CWVIL0103000 - CWVIL0103100 - CWVIL0103104 - CWVIL0103300 - CWVIL0103600
Compatibility	NG‑TRX wireless devices
Compatibility	Wired devices
Onboard inputs	2 onboard wired inputs (reducing the wireless inputs), not expandable
Onboard inputs	Onboard inputs are definable as radio or as NO, NC, balanced, triple balanced
Maximum number of inputs supported	48 total wireless inputs manageable by on-board NG‑TRX radio module (not expandable)
On-board outputs	2 programmable outputs in total
	Connector with 2 outputs for ETRREL4 module
	12 V sensor power output protected by fuse
	1 alarm relay output with clean C‑NO‑NC contacts with a capacity of 3 A at 24 Vac programmable
Maximum number of users	32
Areas/sectors	4 areas with 4 sectors / 2 areas with 8 sectors / 1 area with 16 sectors
User interface	128x65 B/W graphic LCD display with customizable RGB backlighting
	20-key backlit rubber keyboard
	Proximity key reader located in the center of the sector keyboard
Radio interface	3 channels settable from browser for digital transmissions on frequencies of 868.120 MHz, 868.820 MHz and 869.525 MHz for LPD devices
Wireless range	From 400 m to 2000 m in open space
Event Memory	1000 events
Telephone dialer	Telephone book, 16 numbers for voice calls, 2 for digital calls, 4 numbers for remote assistance, 1 for switchboard bypass number
Internal siren	Low-consumption internal piezo siren
Compatible optional modules	MDLAN (LAN module)
Compatible optional modules	MDWIFI (Wi-Fi module)
Integrated interfaces	4G One line module for connection to the exchange via LTE, connection to the e-Connect platform, voice and digital transmission with ContactID, Fast Format and SIA IP Reporting (TCP-2007) protocols
Functions	Built-in temperature sensor with thermostat function
	MDTEMP wireless temperature sensor (optional)
	Daily/weekly chronothermostat function with boiler block detection
Container	Plastic protected against opening and removal, white color
Degree of protection	IP3X
Operating temperatures	-10 / +55°C.
Battery	PACK 1 supplied
Dimensions	L 268 × H 210 × D 63 mm
Weight	0.99 kg with wall mounting bracket
Power supply	From mains 110-240Vac 50Hz (MDPOWER module supplied)
Absorption	35 mA with the control panel on, 27 mA with the control panel off
Certifications	IMQ-Safety Systems EN 50131-3, EN 50131-5-3, EN 50131-6, EN 50131-10 grade 2, environmental class II
