TRIAL

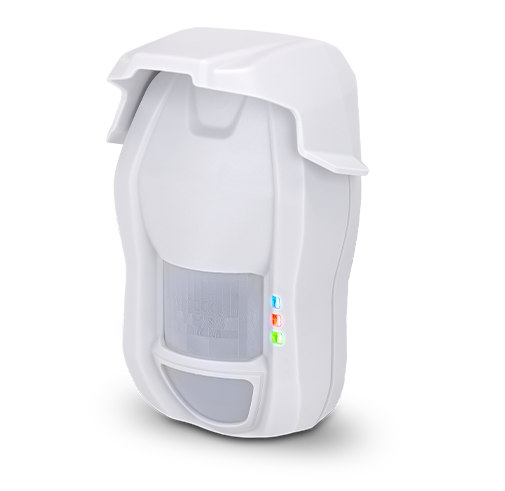

Wired triple technology detector with multifocal lens for outdoor use, IP55, range 15 m
TRIAL is a triple-technology detector (MW + 2 IR), for indoor and outdoor installations, equipped with a multifocal lens with a maximum range of 15 m, a dedicated lens for anti-creep detection, and relay outputs. Its strengths include numerous features that allow for absolute detection precision and extremely high immunity to interference and tampering: dual PIR, 3D function, anti-masking circuit, anti-blinding circuit, anti-creep detection, and anti-disorientation (thanks to the presence of a highly sensitive accelerometer sensor with dual-axis operation). The particular shape of the TRIAL case facilitates wall installation, even with the 6° fixed tilt bracket for 2.1 m installations provided. For outdoor installation, a protective canopy is provided for greater protection against atmospheric agents and sunlight glare. TRIAL is certified IMQ‑Allarme EN 50131‑2-4 grade 3, environmental class 4.
Features
| Application | On the wall |
| Color | White |
| Installation | External |
| Connection | Wired |
| Technology | MW+2IR |
| Line | Trial |
Technical details
| Versions |
Default
RCRTT0202500
-
RCRTT0200100
-
RCRTT0200900
-
RCRTT0202100
-
RCRTT0202200
-
RCRTT0202600
|
| Technology | MW + 2 IR |
| Compatibility | EL. MO. and third-party intrusion control panels |
| Detection range | 15 meters adjustable in 4 steps |
| MW coverage area | 95° on the horizontal plane, 60° on the vertical plane |
| Number of IR sensitive zones | 2 × 28 zones arranged on 4 floors |
| 2 × 3 anti-creep zones on 1 floor | |
| IR coverage area | Volumetric with 94° opening |
| Functions | Anti-masking, anti-blinding, anti-creep, anti-disorientation, anti-tear (with optional KSAS1032 / KSAS1055 kit), 3D function |
| Connections | Alarm relay, fault/masking/blinding relay, 24H output, MW exclusion |
| Dimensions | L 95 x H 167 x D 75 mm |
| Weight | 270 g |
| Power supply | 12 Vdc |
| Power supply voltage absorption | In alarm 21 mA |
| In standby 19 mA | |
| In MW exclusion mode 17 mA | |
| Certifications | IMQ‑Security Systems EN 50131‑2-4 grade 3, environmental class IV |
