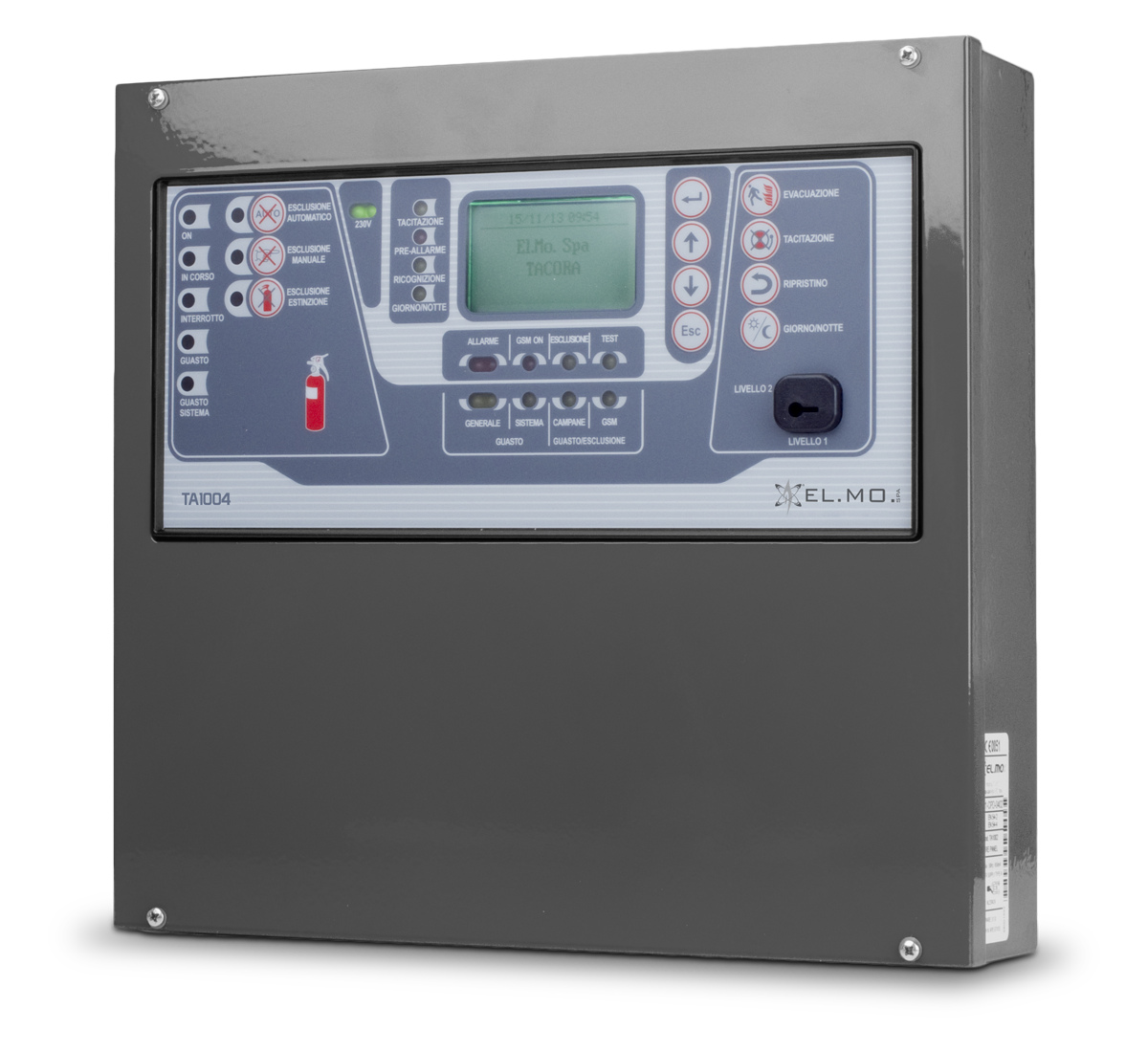

TA1004
Conventional 4-zone control unit
The TA1004 is a high-performance, cutting-edge 4-zone conventional fire alarm control panel from the Tacóra series, offering power and cutting-edge technology. Designed for installation in any context, including banking, industrial, commercial, residential, and civil installations, the control panel can interface with the e-Connect management platform and the GLOBALPRO supervision software. The user-friendly interface, with a graphic display and LED indicator lights, allows for easy programming and use. The TA1004's functions can be expanded and customized thanks to its innovative modular structure: LAN, GSM/LTE, and extinguishing are just some of the modules available for installation. TA1004 is certified CPR 305/2011, EN 54‑2, EN 54- 4, EN 54‑13, EN 54‑21 (with optional 4G MD4GE and LAN MDLAN modules) and EN 12094‑1 (with optional EXTING extinguishing module).
Features
| Maximum loop number | 0 |
| Conventional areas | 4 |
| Product type | Conventional |
Technical details
| Versions |
Default
ICCTA0103700
-
ICCTA0100200
-
ICCTA0100201
-
ICCTA0101400
-
ICCTA0101401
-
ICCTA0102600
-
ICCTA0102601
-
ICCTA0103701
|
| Conventional zones | 4 zones |
| Dedicated conventional button zones | 1 |
| Outputs | 1 fault relay output |
| 1 pre-alarm relay output | |
| 2 auxiliary relay outputs | |
| 1 supervised alarm output | |
| User interface | Color graphic display, LED indicators, buttons |
| Optional EXTING module | |
| Integrated interfaces | 1 × MINI‑DIN for configuration via programming software |
| 1 RS‑485 serial line for the connection of up to 2 TAREPEATER repeater panels | |
| Supervision software | GLOBALPRO |
| LAN connection | Optional MDLAN Ethernet module for an Ethernet connection, interfacing to the e‑Connect platform and integration with the GLOBALPRO supervision software |
| GSM connection | Optional MDGSME GSM module for sending alarm/control panel status reports via SMS and interfacing with the e‑Connect platform |
| LTE connection | Optional MD4GE module for sending alarm / control panel status reports via SMS, interfacing to the e-Connect platform and connecting to security institutes via SIA IP Reporting protocol (TCP-2007) (in combination with MDLAN) |
| Degree of protection | IP30 |
