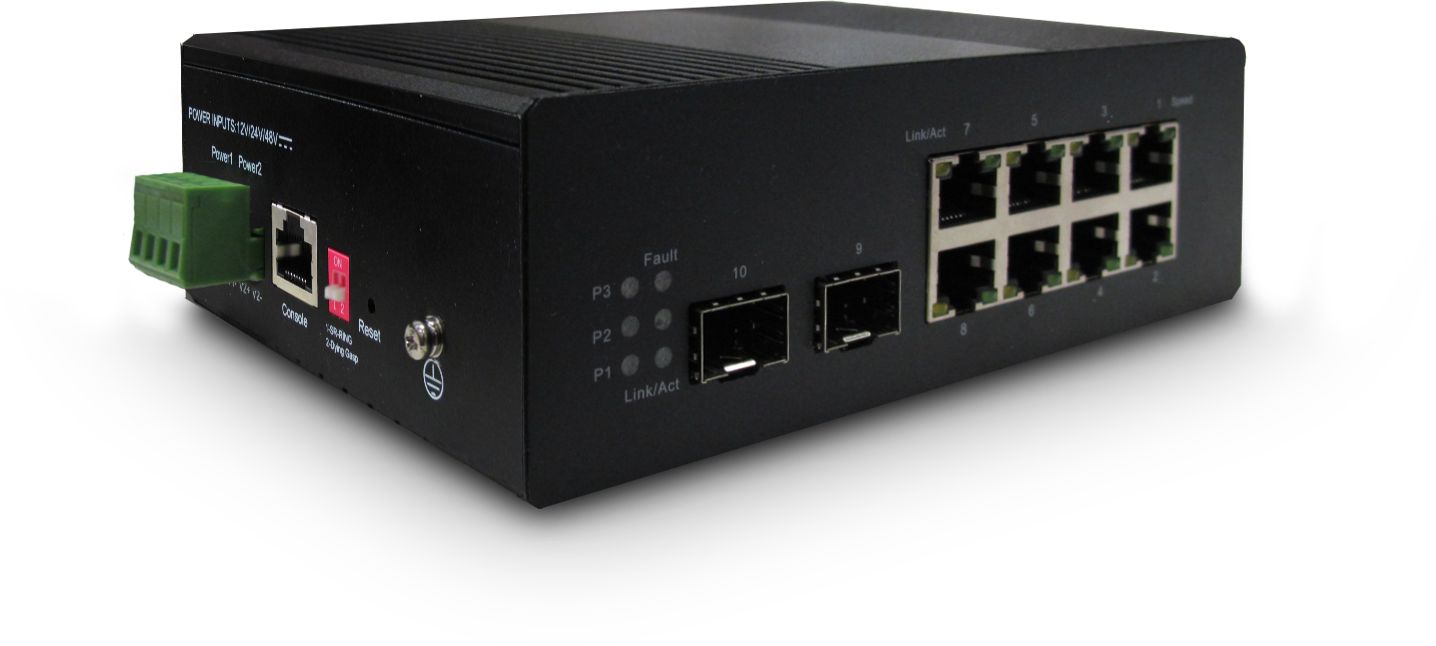

SW09
Extended Range Industrial Managed PoE Switch on DIN Rail, 8 Gigabit PoE Ports + 2 Fiber Uplink Ports + 1 Console Port, Max 240W
SW09 is an industrial DIN rail switch with extended range, 8 Gigabit PoE ports and 2 SFP Uplink ports. It can deliver a maximum of 240W. It features a console port for web-based programming, even remotely.
Features
| Industrial | Yes |
| PoE+ | Yes |
| SFP uplink ports | Yes |
| Uplink ports | 2 |
| Managed | Yes |
| PoE++ | No |
| RJ-45 uplink ports | No |
| Combo Uplink Ports | No |
| No. of PoE ports | 8 |
Technical details
| Versions |
Default
VRSWT0003100
|
| Type | Industrial managed PoE switch with 11 total ports |
| Ports | 8 PoE ports 10/100/1000 Mbps (RJ‑45) 802.3at/af |
| 2 uplink ports 10/100/1000 Mbps Fiber (SFP) | |
| 1 Console port (RJ‑45) | |
| Power output | 240 W |
| Maximum power output per port | 30 W |
| Transmission distance | 100 m |
| Bandwidth | 20 Gbps |
| Packet forwarding rate | 41,670 Mpps |
| MAC address table | 8K |
| Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.3af, IEEE 802.3at, RSTP/MSTP spanning tree, VLAN, ACL, ERPS ring, IPV6, SSL, SNMP (v1, v2, v3), IGMP snooping |
| Power supply | 48 Vdc (optional external power supply) |
| Certifications | CE Marking |
| FCC | |
| Operating temperatures | −40 - 75 °C |
| Relative humidity | 10÷90% non-condensing |
| Dimensions | L 180 × H 44.5 × D 150 mm |
