RIVERTH

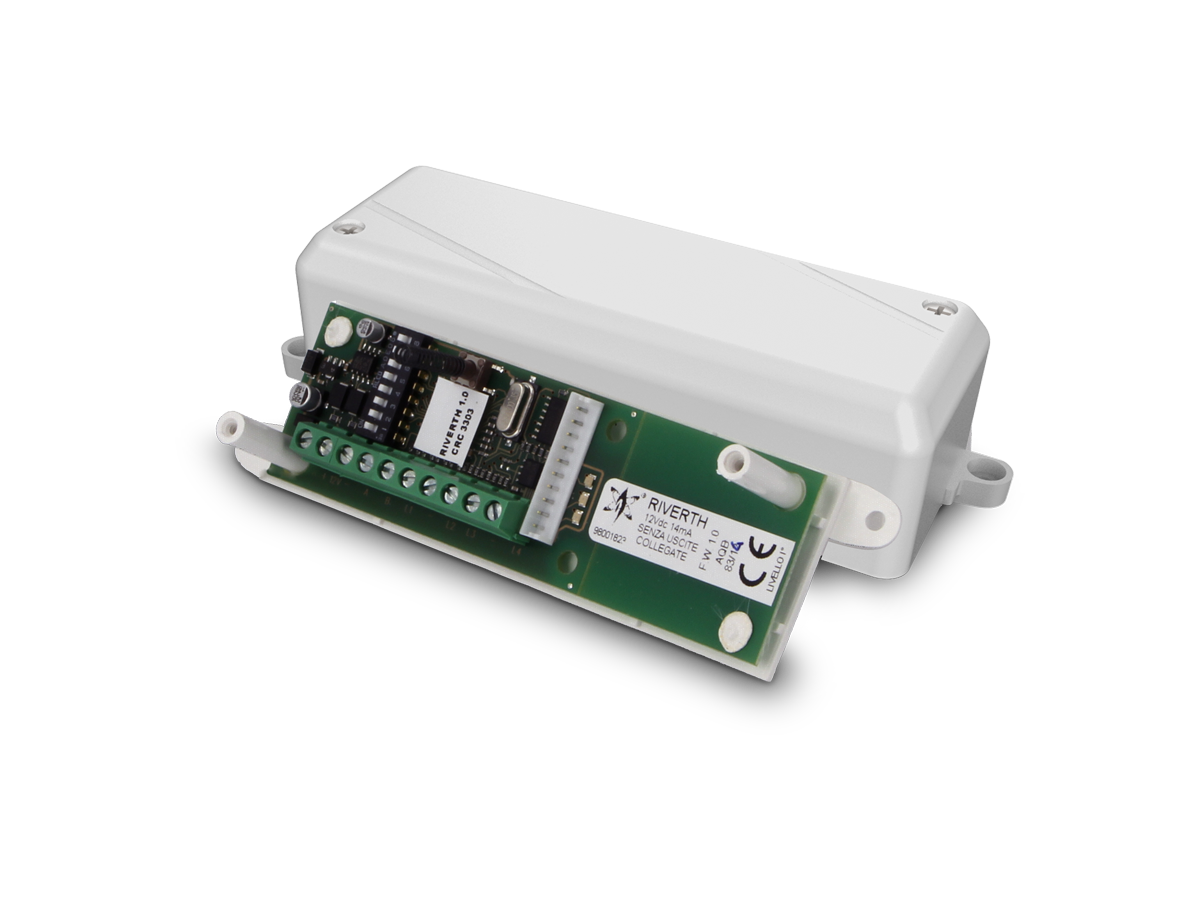

Concentrator for analog quantities for connection to STRIVER temperature probe or devices with 4-20mA interface

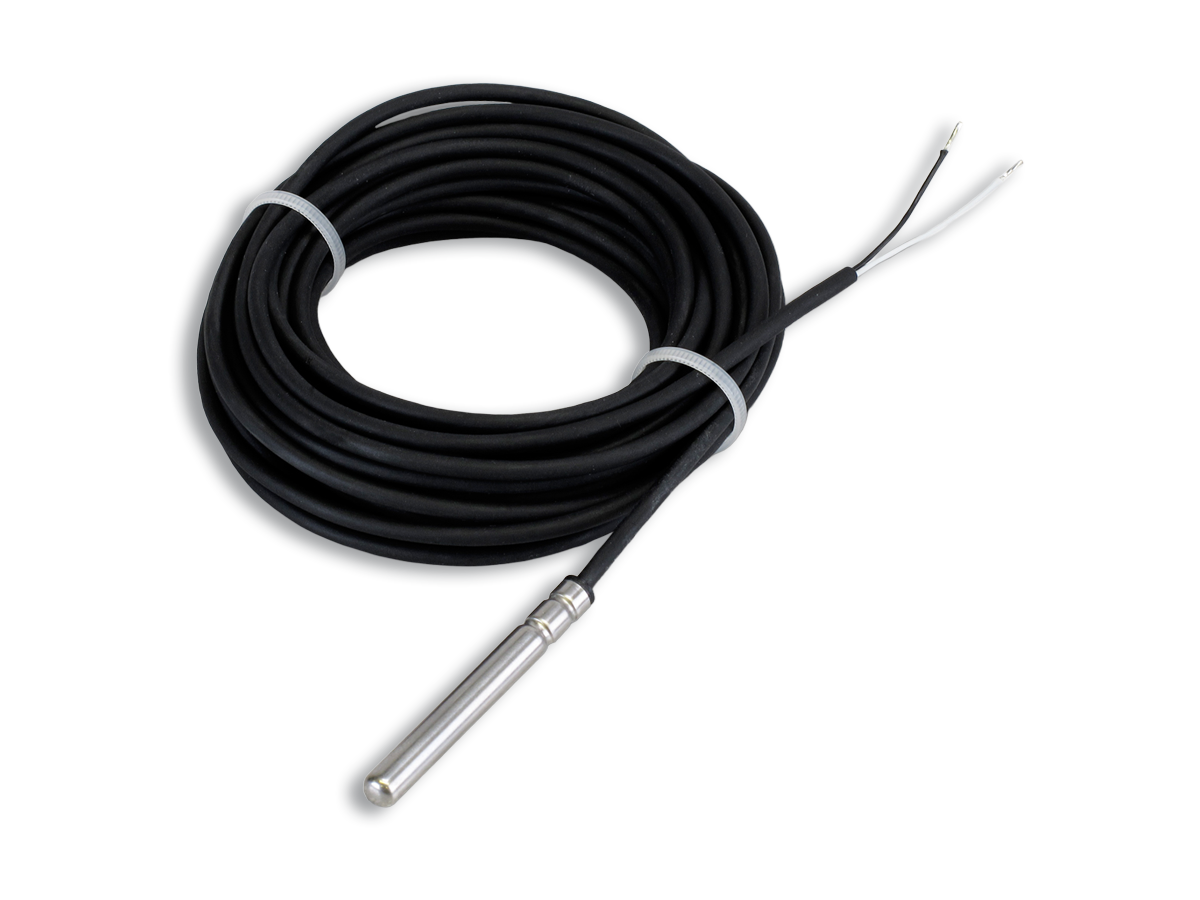

RIVERTH is the ideal concentrator for industrial and commercial systems: it expands the scope of the RIVER series, being designed to manage analog values such as temperature probes (model RIVERST) or devices with a 4-20mA interface, such as gas detectors. It therefore becomes the optimal solution for extending the normal range of use of an intrusion detection system to specific technological control situations, such as counters, cold rooms and similar environments and applications. The concentrator is equipped with 4 freely programmable terminal block inputs and a standard connector for connecting a relay output card to activate four relays.

Features

Relay outputs	No
Electronic outputs	4
Device Management	Analog quantities
Maximum number of entries	4

Technical details

Versions	Default CSRIV0002900 - CSRIV0001500
Compatibility	PROXIMA, SUPERIA, VIDOMO2K and PREGIO series control units
Inputs	4 programmable inputs as 4-20mA or in temperature with intervention range from −35 to +70 °C
Sensitivity	+ 1 °C with temperature probe, + 0.1 mA with devices with 4‑20mA output

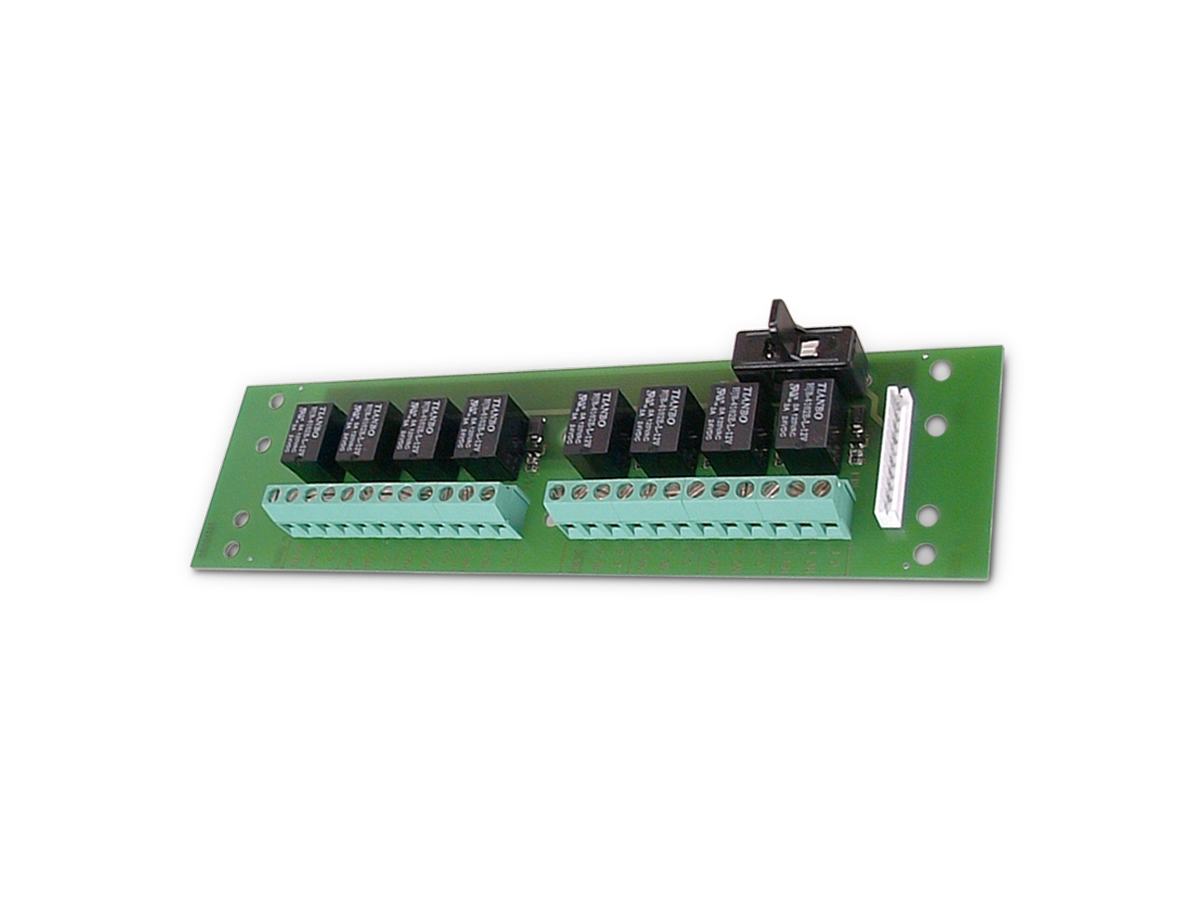

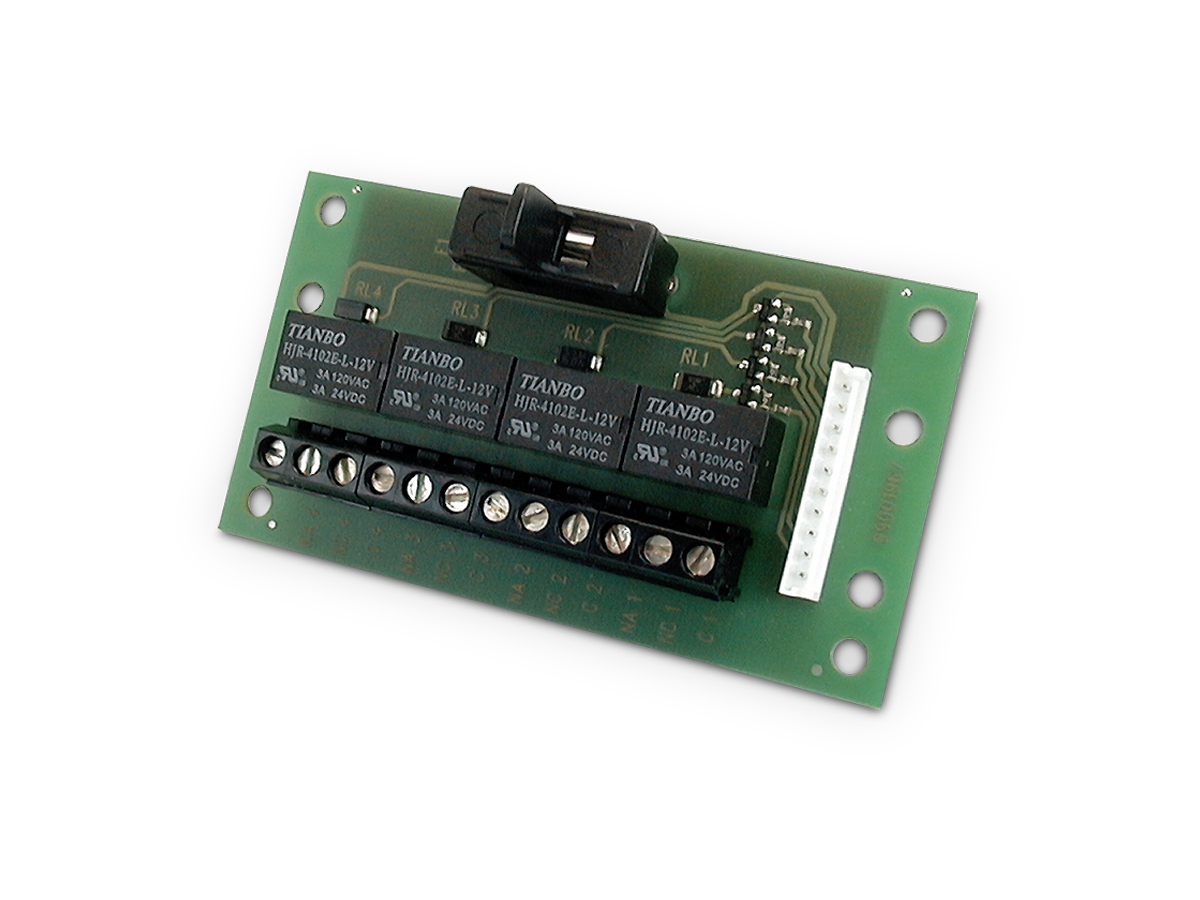

Outputs	4 electronic outputs for ETRREL4 or ETRREL
Power supply	12 Vdc
Power consumption at supply voltage	Maximum 14 mA
Dimensions	L 130 × H 35 × D 46 mm
Weight	122 g (packaged product)
