RCCO

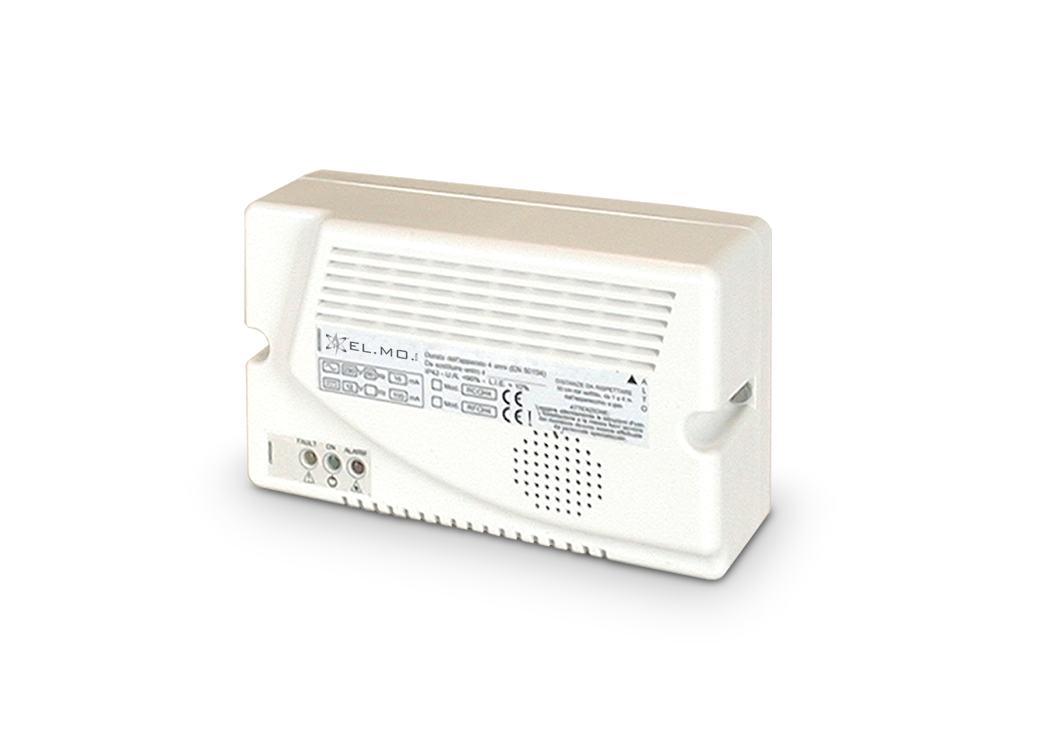

Electrochemical cell CO (Carbon Monoxide) detector
Features
| Application | On the wall |
| Color | White |
| Connection | Wired |
| Technology | Electrochemical cell |
| Installation | Internal |
| Line | Special GAS CO |
Technical details
| Versions |
Default
RCRRGMP00300
-
RCRRGMP003I0
|
| Detection type | Gas concentrations in the air equal to 10% LEL (lower explosive limit) |
| Outputs | Relay output and self-monitoring circuit |
| Signals | LEDs for power, fault and alarm and internal buzzer |
| Sound pressure | 96 dB at 1 m |
| Dimensions | L 150 × H 90 × D 52 mm |
| Weight | 400 g (packaged product) |
| Power supply | 230 Vac or 12 Vdc |
| Absorption at 230 Vac | At rest 12 mA |
| In alarm 13.5 mA | |
| Absorption at 12 Vdc | At rest 13 mA |
| In alarm 66 mA | |
| Degree of protection | IP42 |
Technical documentation
Select the type of documentation you want to see
Available Documents: 7
