Intrusion control panels
PREGIO500PL
Hybrid wired/wireless control unit with 24 inputs in a larger plastic container
PREGIO500PL is a wired/wireless (using GATEWAY2K for NG‑TRX devices) intrusion control control unit in a plastic container and developed on a completely innovative architecture, open to future scenarios and technologies. Thanks to the possibility of extending the number of inputs to 24, PREGIO500PL is the ideal solution for a variety of installation situations, both domestic and commercial/civil. It is based on the principle of integration with Plug&Play Wi‑Fi, LTE, GSM/GPRS modules and natively incorporates the best of EL.MO. technology while using only a small part of its extremely high processing capacity. In this way, a large part of its potential can be used for future devices and to integrate what the technology of tomorrow will offer. PREGIO500 is a “green” control unit , which embraces and highlights extremely current aspects and issues such as reducing consumption and the resulting economic savings and environmental protection. PREGIO500PL is certified IMQ-Allarme EN 50131 grade 2, environmental class II.
Features
| Maximum number of inputs | 24 |
| Integrated keypad | No |
| D-Pulse | No |
| EN 50131 grade | IMQ certified grade 2 |
| Connection | Wired |
| Line | Pregio |
| Scope | Residential, small business and retail |
| Container | Plastic |
| Onboard wired inputs | 8 (16 split) |
Technical details
| Versions |
Default
CCPRG0300400
-
CCPRG0300300
|
| On-board inputs | 8 wired inputs (16 with split function) expandable with GATEWAY2K or RIVER series concentrators via ULTRABUS (RS-485) |
| Supported inputs | 24 |
| On-board outputs | 12 V detectors power output protected by fuse / 1 programmable relay alarm output (max 3 A) / Connector for 8-output ETRREL board / Terminals for siren control and power supply |
| Supported outputs | 24 (with optional relay modules on RIVER series concentrators), programmable and controllable |
| Maximum number of users | 32 |

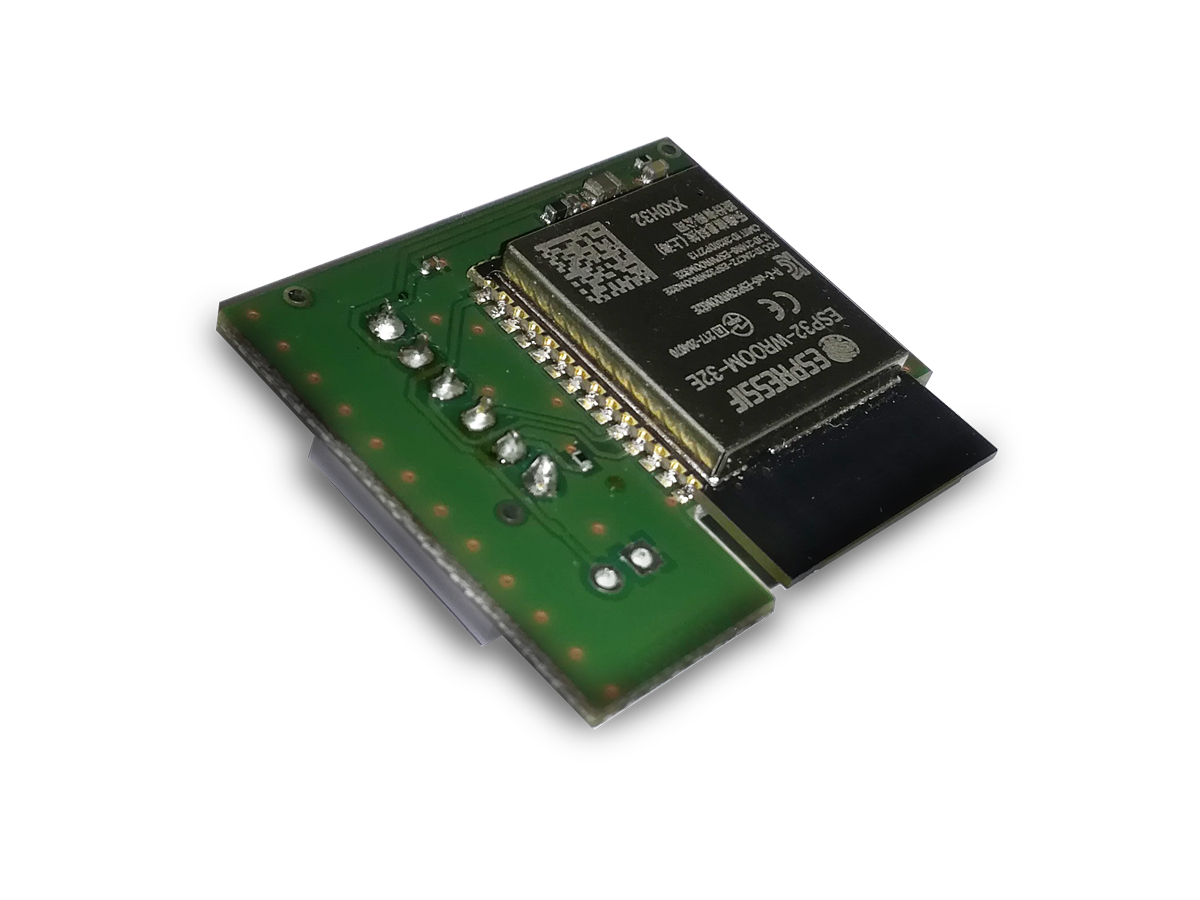

| Slots for optional communication modules | 1 slot for a module of your choice between MDGSMI/MDGSME/MD4GI/MD4GE + 1 slot for the MDWIFIH module |

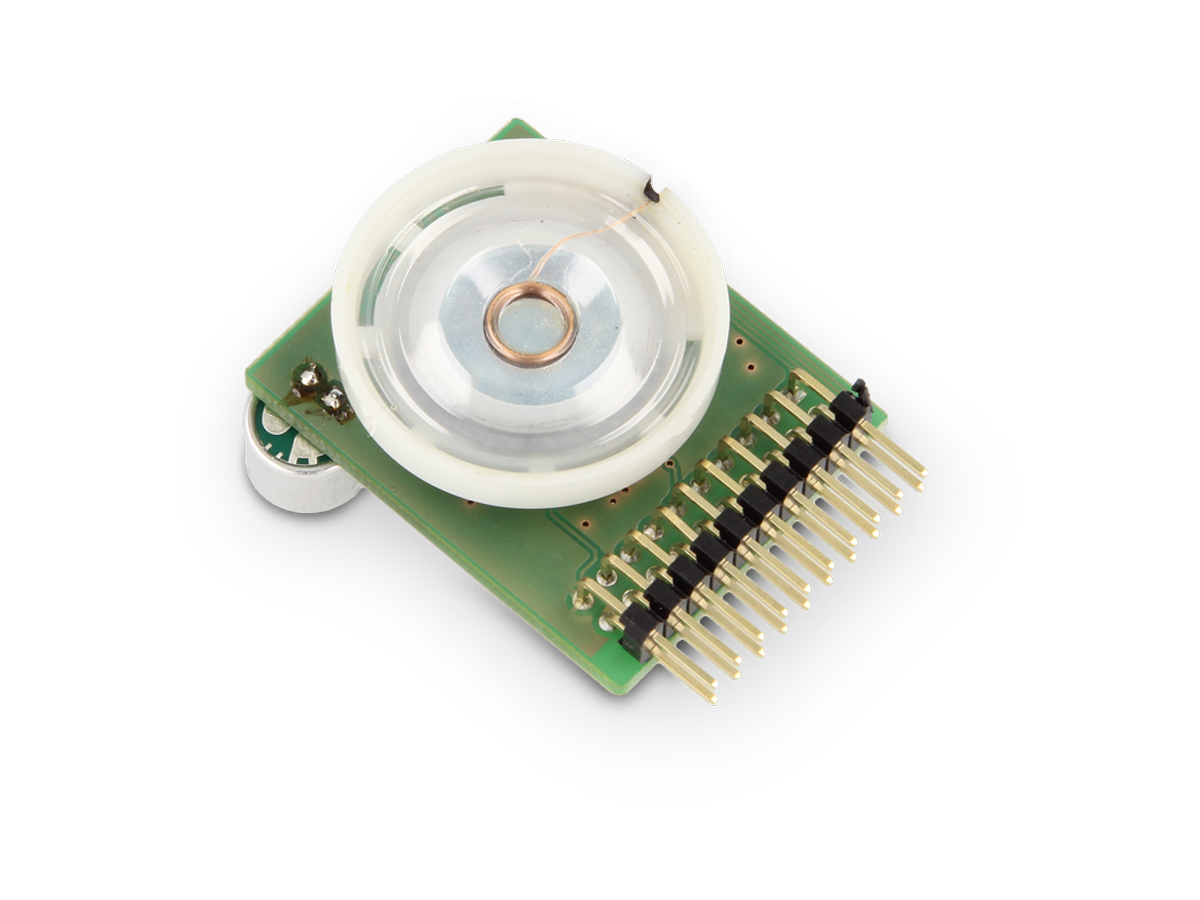

| Other compatible optional modules | MDVOICE64 (speech synthesis module) |
| Compatibility | Wired devices, RS-485 ULTRABUS, wireless NG-TRX (via GATEWAY2K) |
| Areas/Sectors | 4 areas with 4 sectors / 2 areas with 8 sectors / 1 area with 16 sectors |
| Control devices | 16 control devices in total on the serial line, to be chosen between keypads, control points, inserters, additional status indicators, of which a maximum of 4 advanced keypads per control unit , to be chosen between KARMA and AURA |
| Wireless Device Management | Via GATEWAY2K (wireless NG-TRX) |
| Integrated interfaces | 1 ULTRABUS RS-485 serial interface |
| Connectors | MiniUSB connector for programming, firmware updates and PC management |
| Event memory | 1000 events |
| Text-to-speech | Built-in with 4 predefined messages (extendable to 64 with optional MDVOICE64 card) |
| Functions | Interfacing with e-Connect / Weekly time programmer |
| Protection class | IP3X |
| Operating temperatures | −10 / +40 °C |
| Container | Plastic protected against opening and removal |
| Battery | 7 Ah max (not included) |
| Dimensions | L 283 × H 350 × D 90 mm |
| Weight | 1.00 kg |
| Power supply | 110-240 Vac 50 Hz mains, 1.7 A power supply |
| Current draw | 15 mA at idle |
| Certifications | IMQ-Safety Systems EN 50131-1, EN 50131-3 grade 2, environmental class II |
