MDCOMBI

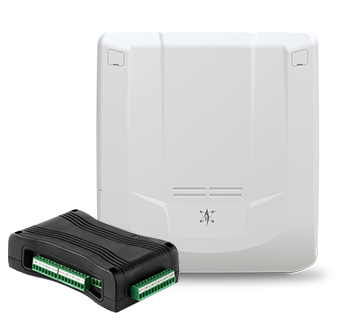

IP Bridge PRO - 4G.IN6.R6 - Digital dialer. Receives alarm and fault signals from intrusion or fire detection control panels and retransmits them via the Internet to control centres and individual recipients.
MDCOMBI is a digital dialer capable of receiving alarm and fault signals from intrusion or fire detection control panels and retransmitting them via the Internet to control centers and individual recipients. MDCOMBI can receive signals from the control panel in various ways: directly, over an RS-232 line, from an existing telephone dialer capable of using the Contact ID protocol (via twisted pair), or via up to 6 relay outputs on the control panel, to be connected to the 6 inputs (configurable as NO or NC) of MDCOMBI.
Features
| Product type | Of communication |
| Interface | 4G + LAN |
Technical details
| Versions |
Default
AIACTMC00100
|
| Receiving signals | From a pre-existing telephone dialer that uses the Contact ID protocol (via telephone wire) or from 6 control panel relay outputs to be connected to the MDCOMBI inputs or from an RS‑232 line |
| Alarm transmission | Via SIA IP DC‑09 or TEX protocol via Internet (Ethernet and/or 4G) to 6 different alarm receiving centers, with sending of VOIP calls, SMS via Internet, e-mail (VOIP and SMS services require the use of an external SIP server) |
| Inputs | 6 separately programmable NO/NC inputs |
| 1 PSTN input for the digital conversion of signals coming from a telephone dialer | |
| Outputs | 6 NO relay outputs max 1 A @ 12 Vdc |
| Cameras | Up to 4 ONVIF IP cameras connectable |
| Programming | Via integrated web server |
| Memory card | 8 GB SD card installed on board 8 GB (history and video memory) |
| Power supply | 12 - 24 Vdc |
| Dimensions | L 200 × H 260 × D 90 mm |
| Certifications | CPR 305/2011 EN 54‑13, EN 54‑21 |
