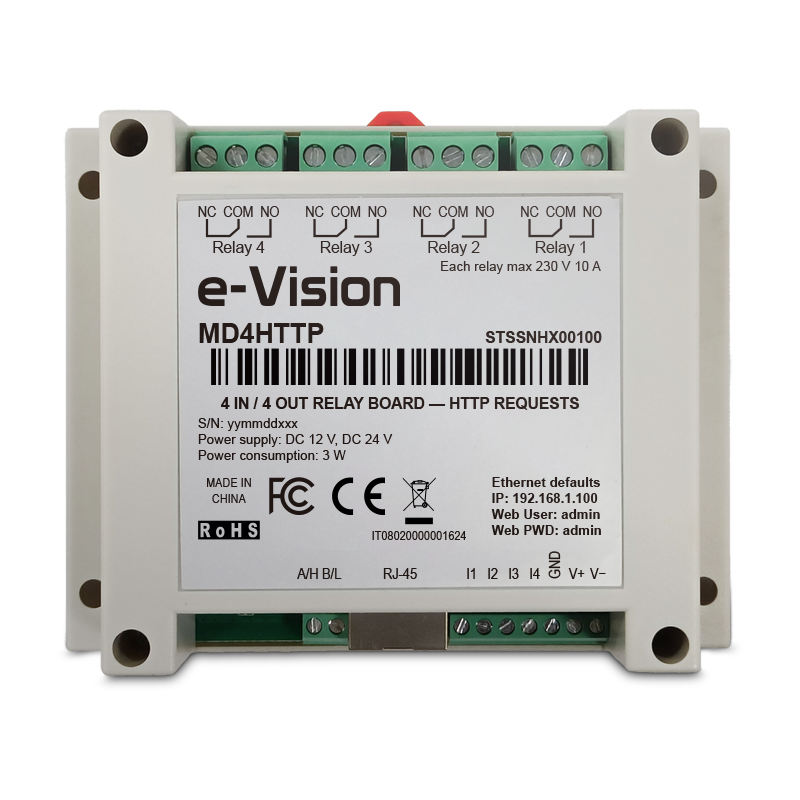

MD4HTTP
4-IN, 4-OUT relay module with Wi-Fi and LAN interface with HTTP request sending and receiving capability
The MD4HTTP is a 4-input, 4-output relay module with an Ethernet and Wi-Fi interface capable of: Receiving commands via HTTP requests and sending HTTP requests to IP addresses in the event of an input switching imbalance. In other words, it can signal the open and closed status of an INPUT contact. Unlike similar devices available on the market, this IN/OUT module has bidirectional management regarding the ability to autonomously send/receive HTTP requests. It is equipped with 4 high-power output relays (up to 10 A each), making it suitable for home automation, building automation, and video surveillance applications.
Features
| Interface | Relay |
| Product type | For building automation interfacing |
Technical details
| Versions |
Default
STSSNHX00100
|
| Inputs/Outputs | 4 IN and 4 OUT |
| Communication interface | LAN / Wi‑Fi |
| Relay power | 230 Vac - max 10 A each |
| Current | 1.5 A at 12 Vdc |
| Power consumption | 3 W |
| Power supply | 12 Vdc / 24 Vdc |
| Dimensions | L 116 x H 92 x D 41 mm |
Technical documentation
Select the type of documentation you want to see
Available Documents: 8
