Wireless Intrusion Detection
LUPUS2K
NG‑TRX wireless perimeter transmitter with 2 inputs for external contact and roller shutter

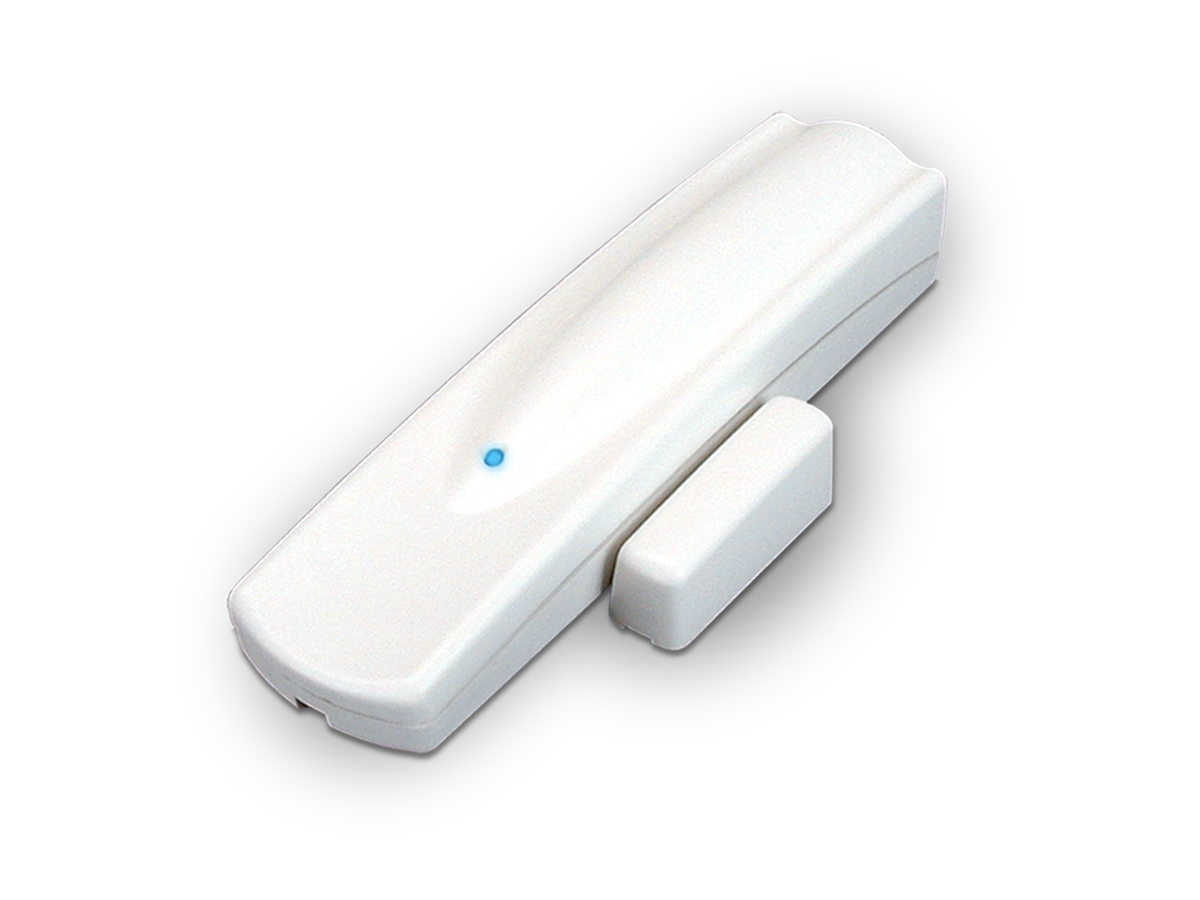

LUPUS2K (formerly code LUPUSTRX) is a two-way wireless perimeter transmitter from the NG‑TRX series that is quick and easy to install. It protects windows and doors in general, without the need for any wiring, integrating harmoniously with the environment thanks to its white color and compact, unobtrusive dimensions. LUPUS2K is equipped with an on-board magnetic contact, 1 NC input for magnetic contacts, 1 NC input programmed by default for connection with roller shutter sensors up to 8 meters away, reprogrammable if necessary for a second input for magnetic contacts. Compared to the previous generation of LUPUS, LUPUS2K is able to manage 3 different channels, freely combinable between the on-board contact, the first external contact and the second external contact/roller shutter sensor. The connection range with the NG‑TRX control unit is 2 km. Finally, another aspect significantly raises the technical profile of LUPUS2K: the possibility of configuration via software, even from a remote PC via LAN/WAN, facilitating installation and maintenance.
Features
| Connection | Wireless |
| Color | White |
| Piezo | No |
| Installation | Visible and shuttered |
| Line | Lupus |
Technical details
| Versions |
Default
RWRCM0014800
-
RWRCM0007300
-
RWRCM0012100
|
| Compatibility | VILLEGGIO NG‑TRX and GATEWAY2K control panels |
| Additional inputs | 1 NC input for magnetic contacts. 1 NC input for connection with roller shutter sensors up to 8 meters, reprogrammable for a second input for magnetic contacts. |
| Channel management | Maximum 3 (combinations of your choice between the on-board contact, the first external contact and the second external contact/roller shutter sensor) |
| Programming | Via BrowserOne software |
| Protections | Anti-opening |
| Anti-tear with KSAS1013 kit (optional) | |
| Wireless range | 2000 m (in open field) |
| Views | External LED |
| Dimensions | Transmitter L 150 × H 33 × D 39 mm |
| Magnet L 47 × H 19 × D 15 mm | |
| Degree of protection | IP3X |
| Color | White (LUPUS2K) |
| Brown (LUPUSM2K) | |
| Power supply | 3.6 V from ER14250 lithium battery |
| Autonomy | 5 years |
| Certifications | IMQ‑Safety Systems EN 50131‑2-6 and EN 50131‑5-3 grade 2, environmental class II |
