Hardwired Intrusion Detection
IPCONTACT

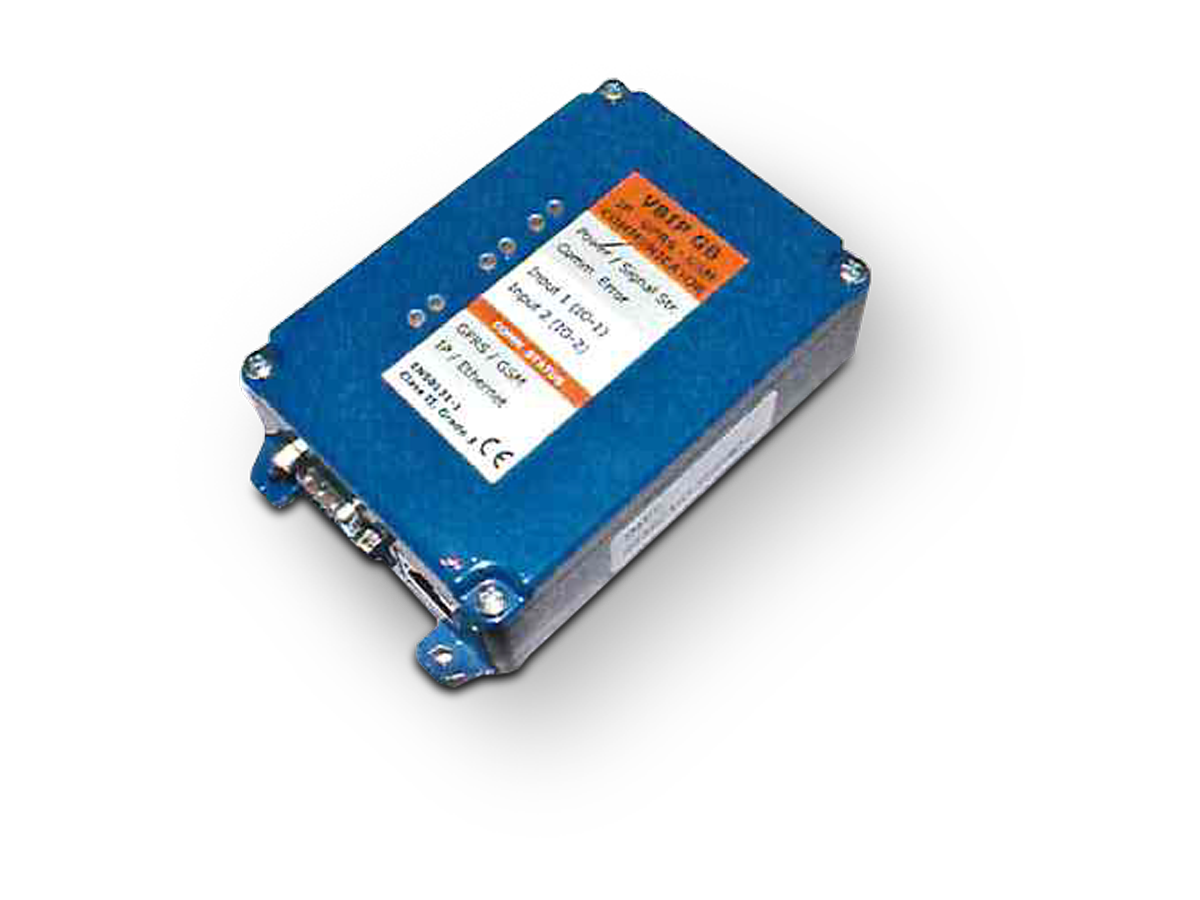

Contact-ID IP interface module for EL.MO. intrusion control panels. It allows the conversion of data received in Contact-ID protocol via PSTN and their transmission (with the same protocol) via IP.
IPCONTACT is a Contact‑ID IP interface module for EL.MO. intrusion control panels. It allows the conversion of data received in the Contact‑ID protocol via PSTN and their transmission (with the same protocol) via IP. Equipped with a 10 Base‑T RJ-45 connector for connection to a local network, it also includes a slot for a data SIM for connection via GPRS.
Features
| Interface | LAN |
| Product type | Contact-ID IP Interface |
Technical details
| Versions |
Default
ACMDCCL01400
|
| Integrated interfaces | RJ-45 10 Base‑T connector for connection to a local network |
| Housing for a data SIM for connection via GPRS | |
| Power supply | 10.5 - 15 Vdc |
| Maximum current consumption | 500 mA (in transmission) |
Technical documentation
Select the type of documentation you want to see
Available Documents: 6
