Hardwired Intrusion Detection

I8S

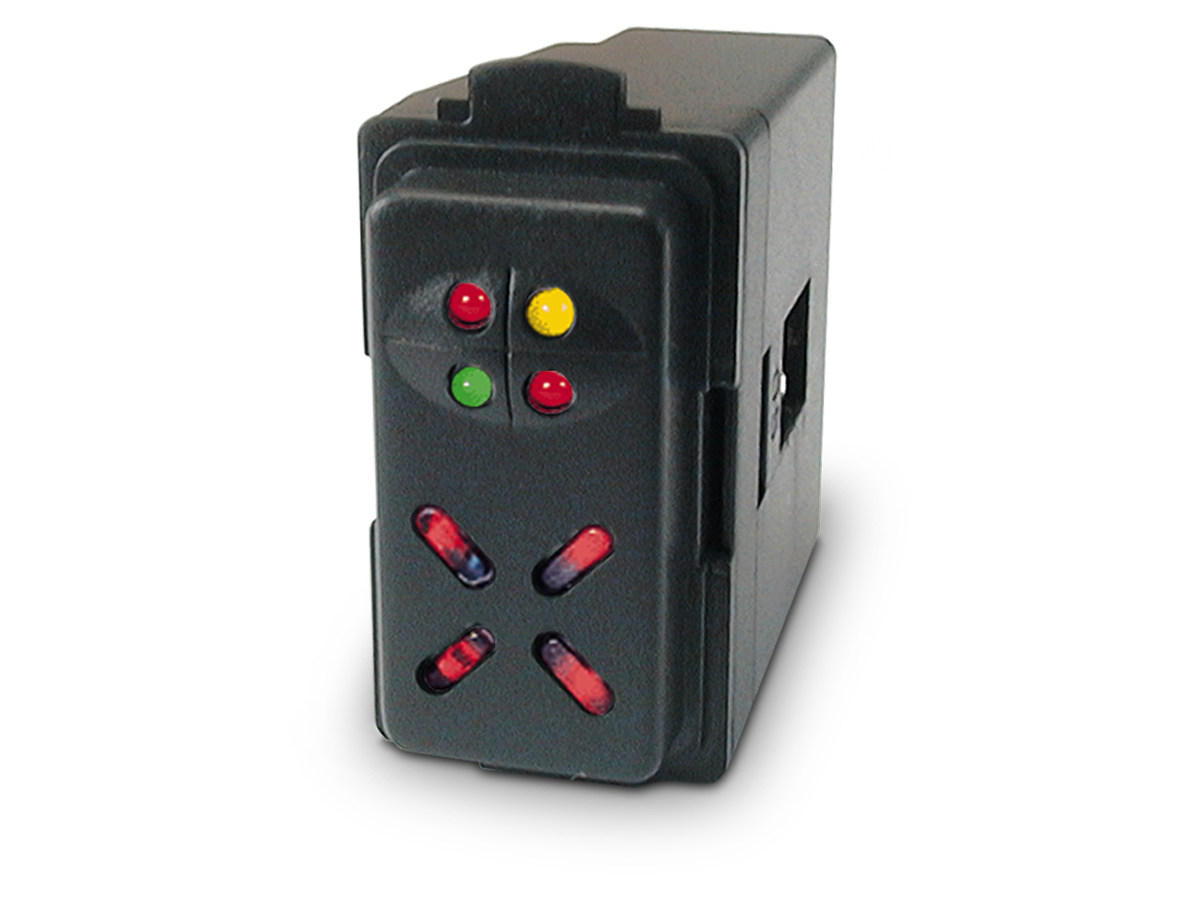

RS‑485 ULTRABUS reader for M4 or M4LED proximity keys. Black.

The I8S is a black addressable reader in a tropicalized case that allows you to easily arm/disarm the system simply by placing an M4 or M4LED proximity key nearby. It is compatible with PROXIMA and SUPERIA series intrusion control panels in TERABUS mode and with all control panels equipped with an ULTRABUS interface. Four LEDs allow for quick viewing of the system's arming/disarming status. It is compatible with TICINO-MAGIC flanges and occupies one "plug". A wide range of adapters is available for insertion into flanges of other series.

Features

Color

Black

Technical details

Versions	Default OCINS0103300 - OCINS0100900 Versione Nera
Communication interface	RS‑485 ULTRABUS
Compatibility	With PROXIMA and SUPERIA series in TERABUS mode - Backward compatible with all control panels equipped with an ULTRABUS interface
Views	4 LEDs for operating status indications
Compatible plate	TICINO MAGIC, specific adapters are available for other plates
Operating temperatures	−10 / +45 °C
Dimensions	L 21 × H 42 × D 46 mm
Weight	20 g
Container	Black (I8) / white (I8B) / grey (I8G) / tropicalised black (I8S)
Power supply	12 Vdc
Power consumption at supply voltage	Maximum 30 mA
Certifications	IMQ‑Security Systems EN 50131‑3 grade 2‑3 based on the system in which it is inserted, environmental class II
