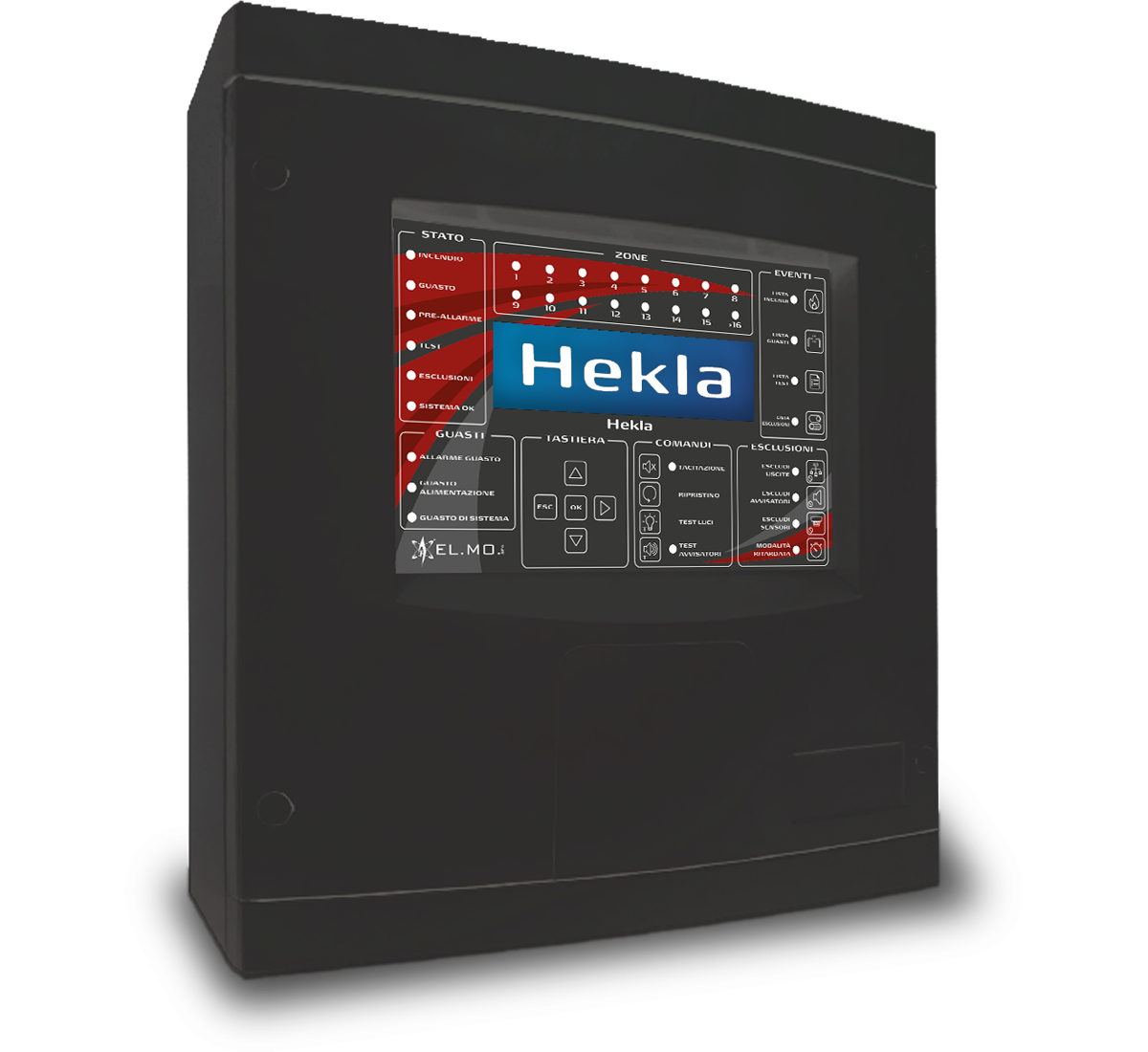

HEKLA

Analogue addressable fire control panel with 250 total addresses on 1 or 2 loops (with optional HL2LOOP card) or 500 total addresses on 2 or 4 loops (with optional HL4LOOP loop card). Integrated keypad with graphic display.

HEKLA is an analog-addressable fire alarm control panel based on a modular architecture that can grow as needed. HEKLA control panels can operate both individually and in a network with a large number of units. All this combined with the products of the new FYRA series, the line of analog-addressable devices with on-board isolator from EL.MO. HEKLA is compatible with the HL2LOOP loop cards (which supports two operating modes: 1 × 250 devices in 1-loop configuration or 2 × 125 in 2-loop configuration) and HL4LOOP (which supports two operating modes: 2 × 250 devices in 2-loop configuration or 4 × 125 in 4-loop configuration). The control panel integrates a front panel for complete management of the fire alarm system. It is possible to create a network of control panels and expansion nodes (HEKLA and HLNODE respectively) and repeater panels (HLREPEATER) using the RS-422 serial line as the communication vector (via the optional HLNET module). HEKLA is certified CPR 305/2011 EN 54-2 and EN 54-4.

Features

Conventional areas	0
Maximum loop number	4
Product type	Analogue

Technical details

Versions	Default CIHL00000100 - CIHL00000101 - CIHL00000105
User interface	Complete synoptic panel, with 240×64 pixel graphic LCD display
Maximum number of nodes in the network	32
Managed Loops	Up to 4 FYRA loops in stand-alone mode via HL2LOOP and HL4LOOP loop cards, up to 124 FYRA loops within a network
Maximum number of devices per loop	Variable depending on the loop card used (HL2LOOP/HL4LOOP)
Number of programmable zones	384
Number of manageable I/O device groups	512
Number of programmable alarm groups	512
On-board outputs	1 fault relay output (NC) - 2 fire alarm relay outputs (C/NC/NO) - 2 supervised conventional alarm outputs (individually programmable)
On-board inputs	Programmable inputs
Loop power supply management	Yes
Programming	Via integrated keyboard or software
Programming	USB programming connector available

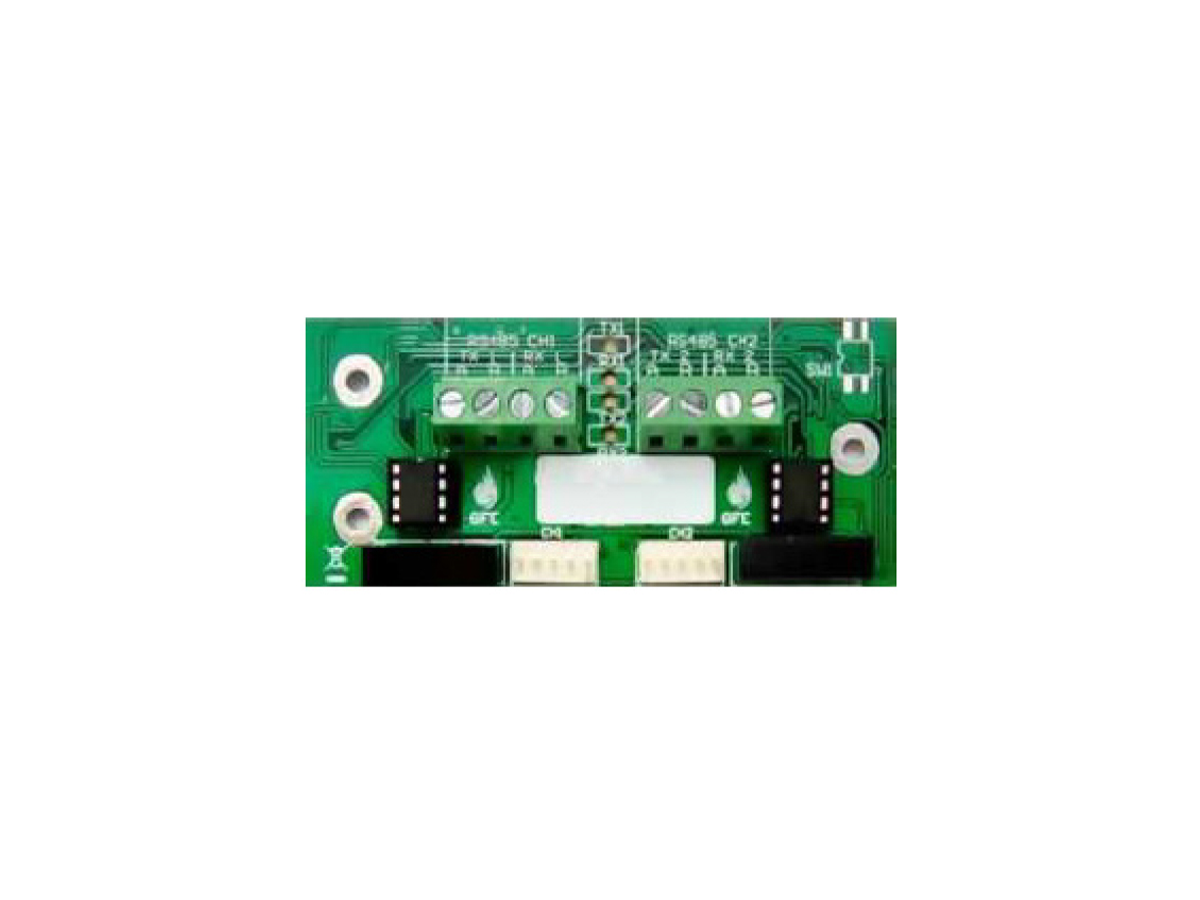

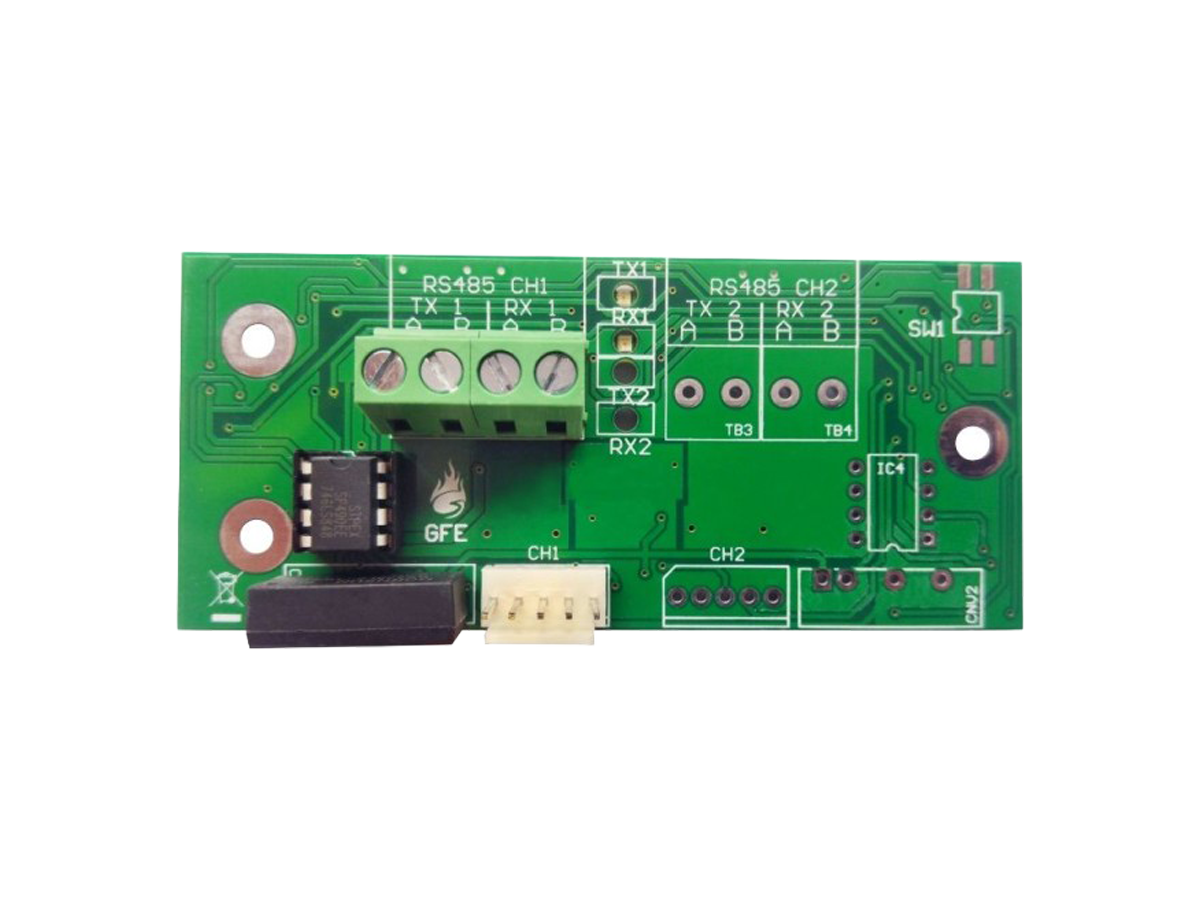

Connection to central/panel network	Using the optional HLNET module

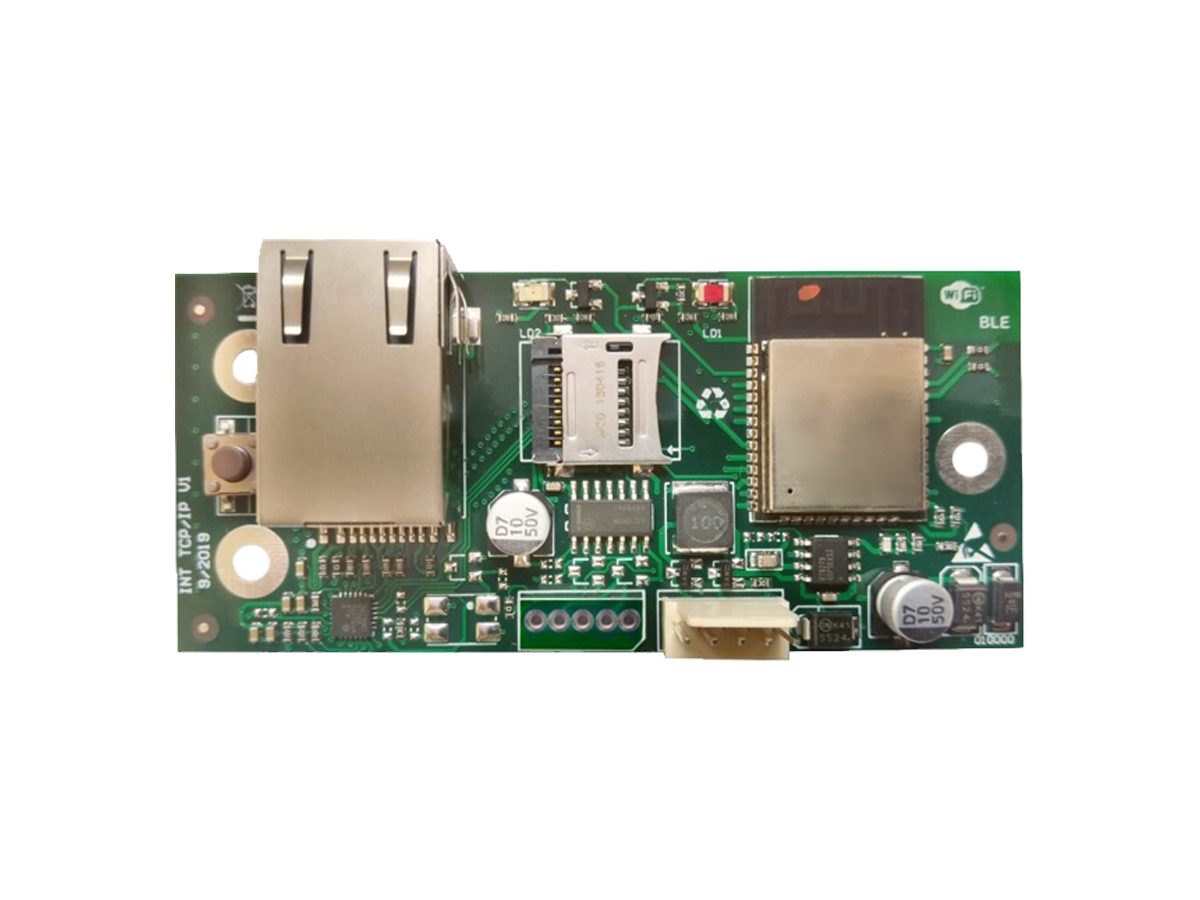

LAN connection	Via optional HLLANGPRO module for interfacing to GLOBALPRO
Event Memory	10,000
Battery	2 × 12 Vdc 12 Ah
Degree of protection	IP30
Dimensions	L 340 × H 370 × D 125 mm
Weight	1.60 kg (approximately 7 kg with batteries)
Power consumption at supply voltage - At rest	95 mA
Power supply	27.5 V
Certifications	CPR 305/2011 EN 54‑2, EN 54‑4, EN 54‑13
