GRIFOXRF
Outdoor wireless dual technology detector IP55, 8 m range
GRIFOXRF is a dual-technology wireless outdoor sensor with a multifocal lens that combines refined aesthetics with high-performance and reliable detection features. Its compact design and waterproof IP55 housing make this sensor the ideal solution for protecting outdoor environments in both residential and industrial settings. GRIFOXRF has a maximum range of 8 meters. The MW section ensures 80° coverage on the horizontal plane and 32° on the vertical plane, while the IR section has an 81° aperture and 18 sensitive zones arranged on 4 levels. Thanks to intelligent and advanced management of IR and MW technologies, GRIFOXRF is able to optimize battery use and increase battery life up to 2.5 years of operation. The long wireless operating range, certified at 150 meters in open fields, makes GRIFOXRF a highly flexible sensor and ideal for protecting open spaces such as gardens, terraces, and parking lots. Using special dipswitches, it is possible to operate on a wide range of adjustments for the range, sensitivity and inhibition.
Features
| Application | On the wall |
| Connection | Wireless |
| Color | White |
| Installation | External |
| Technology | MW+IR |
| Line | Griffin |
Technical details
| Versions |
Default
RWRDTMP01400
|
| Technology | IR + MW |
| Wireless range | 150 m (in open field) |
| Compatibility | VIDOMO2K, VICOMPACT2K, HERCOLA, PREGIO series (via RIVERRFPLUS concentrators), RX8CH modules, HALLEY and HALENTE |
| Internal/external usage | |

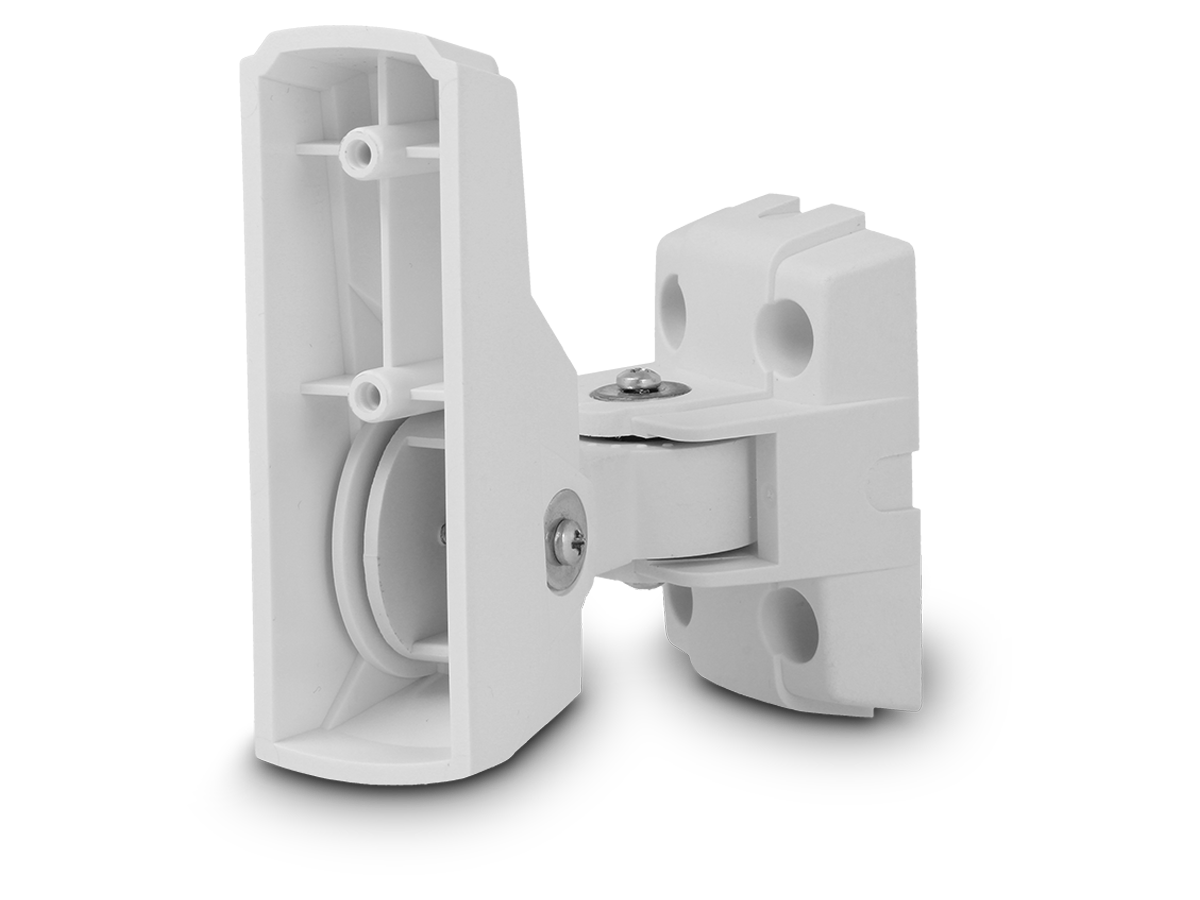

| Installation | On the wall, at a corner with the optional ANGSGX bracket or orientable using the optional SNDSGX bracket |
| Detection range | Max 8 m adjustable in 2 steps |
| MW coverage area | 80° on the horizontal plane, 32° on the vertical plane |
| Number of IR sensitive zones | 18 zones on 4 floors |
| IR coverage area | Volumetric, 81° aperture |
| Dimensions | L 39 × H 155 × D 44 mm |
| Weight | 140 g |
| Power supply | 7.2 V 2.4 Ah lithium battery model 2ER14505 (supplied) |
| Power consumption at the supply voltage | In transmission 16 mA |
| In idle 33 uA | |
| Autonomy | 2.5 years |
| Regulations | Compliant with EN50131‑5-3 and EN50131‑2-2 grade 1, environmental class III |
