Wireless Intrusion Detection
GAIA2K

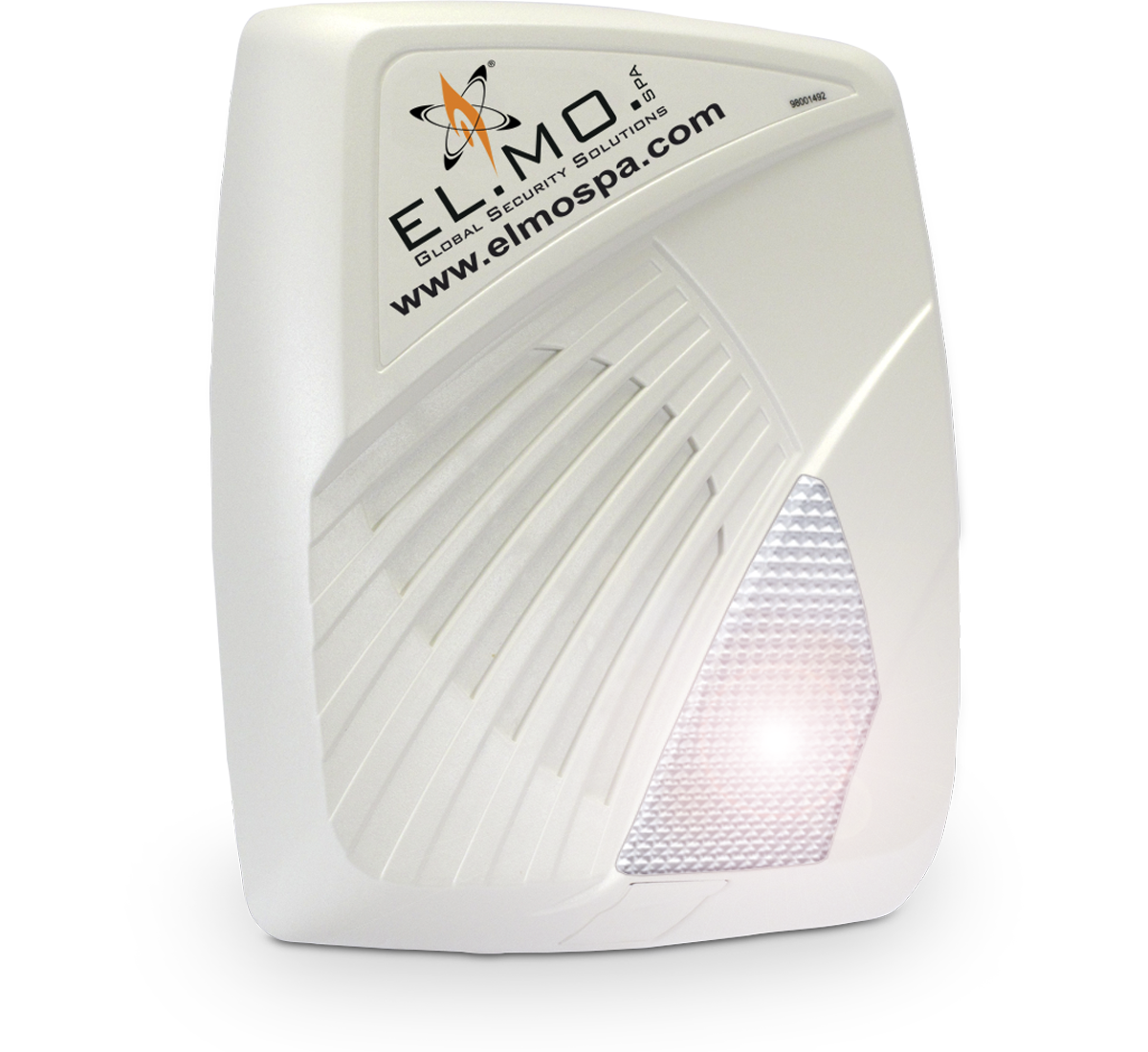

NG‑TRX Two-Way Wireless Outdoor Siren
The GAIA2K is a wireless outdoor siren with NG-TRX technology. It stands out for its simplicity and installation flexibility thanks to its 2 km operating range in open fields and, above all, the possibility of configuration via Browserone software from a PC, even remotely via LAN/WAN. Parameters such as audible and visual signals, volume and activation duration, entry delay, exit delay, and alarm memory signals can be easily configured via the software. Triple frequency bidirectional communication with the control panel ensures an extremely high level of security. The front LED flasher operates in sync with the audible element and also reports system arming/disarming signals. The self-protection tamper system will activate the siren in the event of tampering. The siren is self-powered by an internal lithium battery (included), which guarantees an average battery life of 3 years. GAIA2K is certified IMQ‑Allarme EN 50131‑4, EN 50131‑5-3, grade 2, environmental class IV.
Features
| Connection | Wireless |
| Color | White |
| Installation | External |
| Trumpets | 1 |
| Line | Gaia |
Technical details
| Versions |
Default
SWEST0001800
-
SWEST0001000
|
| Compatibility | VILLEGGIO NG‑TRX and GATEWAY2K Series |
| Operating frequencies | 868.120 - 868.820 - 869.525 MHz for LPD devices |
| Wireless range | 2000 m (in open field) |
| Programming | From BrowserOne software via PC (also remotely via LAN/WAN) |
| Sound pressure | 103 dBA at 3 m, 110 dBA at 1 m (at 7.2 V, with volume at maximum) |
| Sound type | Bitonal (1.2 kHz - 1.8 kHz) |
| 3 other different sounds are programmable, programmable auxiliary acoustic signals | |
| Horns | 1 4 Ω magnetodynamic horn |
| Container | Protected against opening the lid and being torn from the wall |
| Degree of protection | IP34 |
| Dimensions | L 202 × H 242 × D 90 mm |
| Weight | 1.20 kg |
| Power consumption at supply voltage | In standby 315 µA |
| Maximum 1100 mA | |
| Power supply | From BLSH3360 lithium battery pack included |
| Autonomy | 3 years with 1 alarm cycle per month and 4 arming and disarming of the control panel per day |
| Certifications | IMQ‑Safety Systems EN 50131‑4, EN 50131‑5-3 grade 2, environmental class IV |
Technical documentation
Select the type of documentation you want to see
Available Documents: 10
