Wireless Intrusion Detection
FLY2K

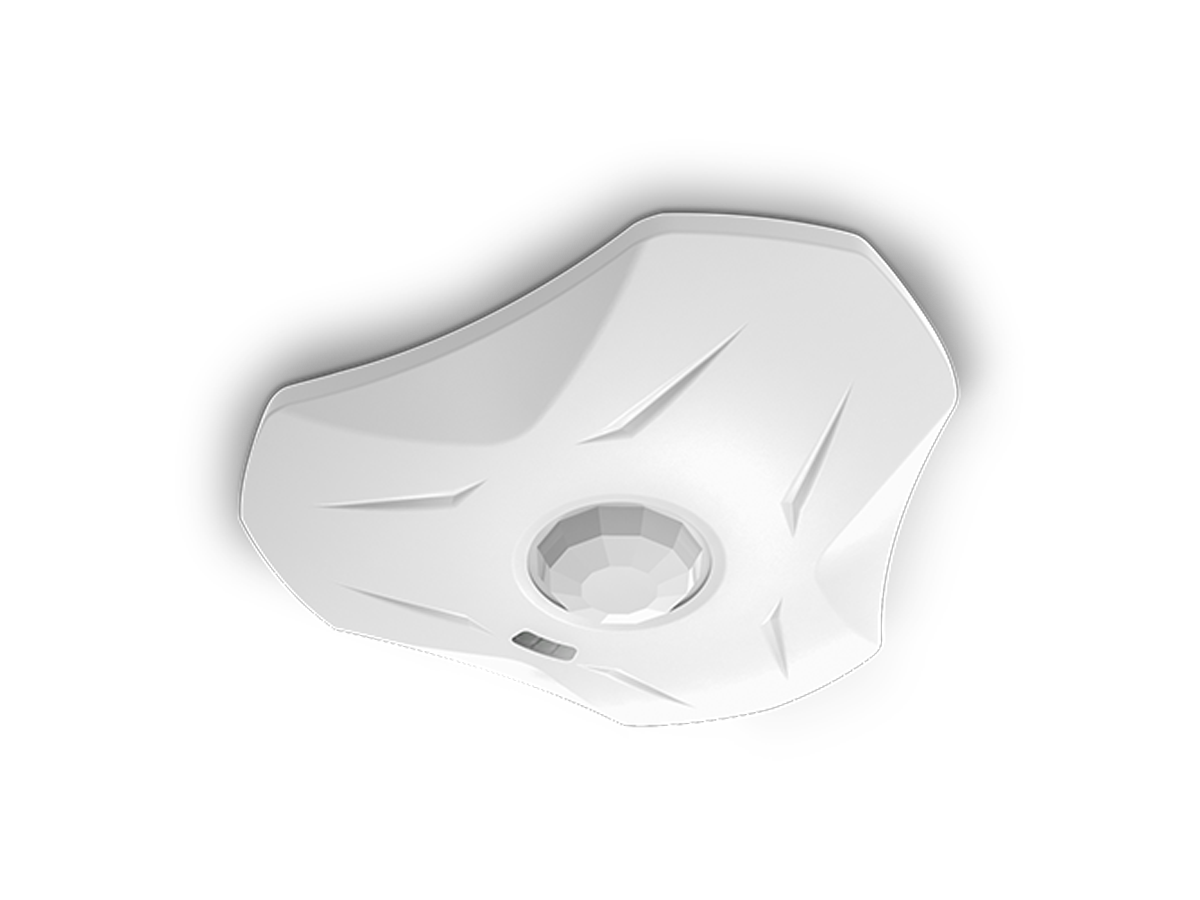

NG‑TRX ceiling detector, 8 m range for installations at 4 m height
FLY2K (version RWRDTMS00700) is a two-way wireless NG‑TRX ceiling detector with dual MW+IR technology. It guarantees a circular conical coverage with an 8 m diameter base referred to installation points 4 m high. It guarantees considerable ease and flexibility of installation thanks to an operating range of up to 1200 meters in open fields and the possibility of setup from a PC, even remotely via LAN/WAN. The infrared (IR) component is equipped with a two-channel digital PIR sensor with a ceiling lens, a silicon filter for white light protection and an anti-masking device. The microwave (MW) section is composed of a 10.525 GHz planar DRO antenna (also available in an alternative 9.9 GHz version for installing 2 FLY2K in close proximity). Three external LEDs provide information on the status and activity of the IR and MW sections. The supplied battery guarantees a useful life of up to 2 years.
Features
| Connection | Wireless |
| Color | White |
| Application | On the ceiling |
| Installation | Internal |
| Technology | MW+IR |
| Line | Fly |
Technical details
| Versions |
Default
RWRDTMS00700
-
RWRDTMS00100
-
RWRDTMS00200
-
RWRDTMS00300
-
RWRDTMS00400
-
RWRDTMS00800
|
| Technology | IR + MW |
| Wireless range | 1,200 m (in open field) |
| Compatibility | VIDOMO2K, VICOMPACT2K and GATEWAY2K |
| Internal use | |
| Ceiling installation | |
| Detection range | Circular coverage with a conical shape with a maximum base of 8 m for installations up to 4 m high |
| MW coverage area | Conical trend |
| IR coverage area | Volumetric with conical sector trend |
| Number of IR sensitive zones | 55 on 6 conical sectors |
| Anti-masking, anti-tearing functions | |
| Programming | Via BrowserOne software |
| Dimensions | L 151 × H 159 × D 36 mm |
| Weight | 206 g |
| Power supply | 7.2 V 2.4 Ah lithium battery model 2ER14505 (included) |
| Power consumption at supply voltage | In idle 29 μA |
| In transmission 24 mA | |
| Autonomy | 2 years |
| Certifications | IMQ‑Safety Systems EN 50131‑2-4, EN 50131‑5-3 grade 2, environmental class II |
