Hardwired Intrusion Detection

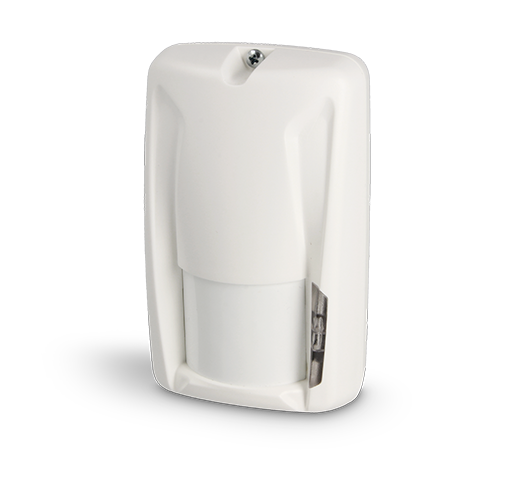

DT2000

Dual technology detector, max range 15 m

The DT2000 is a high-performance dual-technology sensor (MW + IR) with an excellent performance/investment ratio. The DT2000 offers coverage of up to 15 meters and its high quality is certified by a 5-year warranty. The use of a digital PIR sensor ensures high immunity to interference and precise detection of alarm conditions. The IR sensor is equipped with a FRESNEL lens with white light protection, while the MW section is equipped with a low-consumption DRO planar antenna and an anti-masking device. The DT2000 also boasts a creep detection function. Furthermore, the adoption of complete microprocessor management allows for accurate environmental analysis, using sophisticated calculation algorithms. The attractive design, compact size, and the possibility of corner mounting make the DT2000 suitable for any context.

Features

Application	On the wall
Color	White
Connection	Wired
Installation	Internal
Technology	MW+IR
Line	Dt

Technical details

Versions	Default RCRDTMP14300 - RCRDTMP00100 Versione Nera - RCRDTMP02900 - RCRDTMP04300 - RCRDTMP04400 - RCRDTMP04500 - RCRDTMP06900 - RCRDTMP07000 - RCRDTMP12400 - RCRDTMP12500 - RCRDTMP14400 - RCRDTMP15600 - RCRDTMP15700 - RCRDTMP15800 - RCRDTMP15900
Technology	IR + MW
Compatibility	EL. MO. and third-party intrusion control panels
Internal use
Detection range	Max 15 meters adjustable in 4 steps
MW coverage area	95° on the horizontal plane, 60° on the vertical plane
Number of IR sensitive zones	18 zones on 4 floors. 3 anti-creep zones on 1 floor
IR coverage area	Volumetric, 81° aperture
Functions	Anti-masking, anti-creep, anti-tear, DNR function
Connections	Alarm relay, 24H output, MW exclusion
Dimensions	L 64 × H 110 × D 48 mm
Weight	120 g
Power supply	12 Vdc (9 to 15 Vdc)
Power supply voltage absorption	In alarm 13 mA
	In standby 13 mA
	In MW exclusion mode 11 mA
Certifications	IMQ‑Security Systems EN 50131‑2-4 grade 2, environmental class II
