CE700P
Gas control unit with management of up to 23 CE380UR concentrators, for a total of 184 sensors

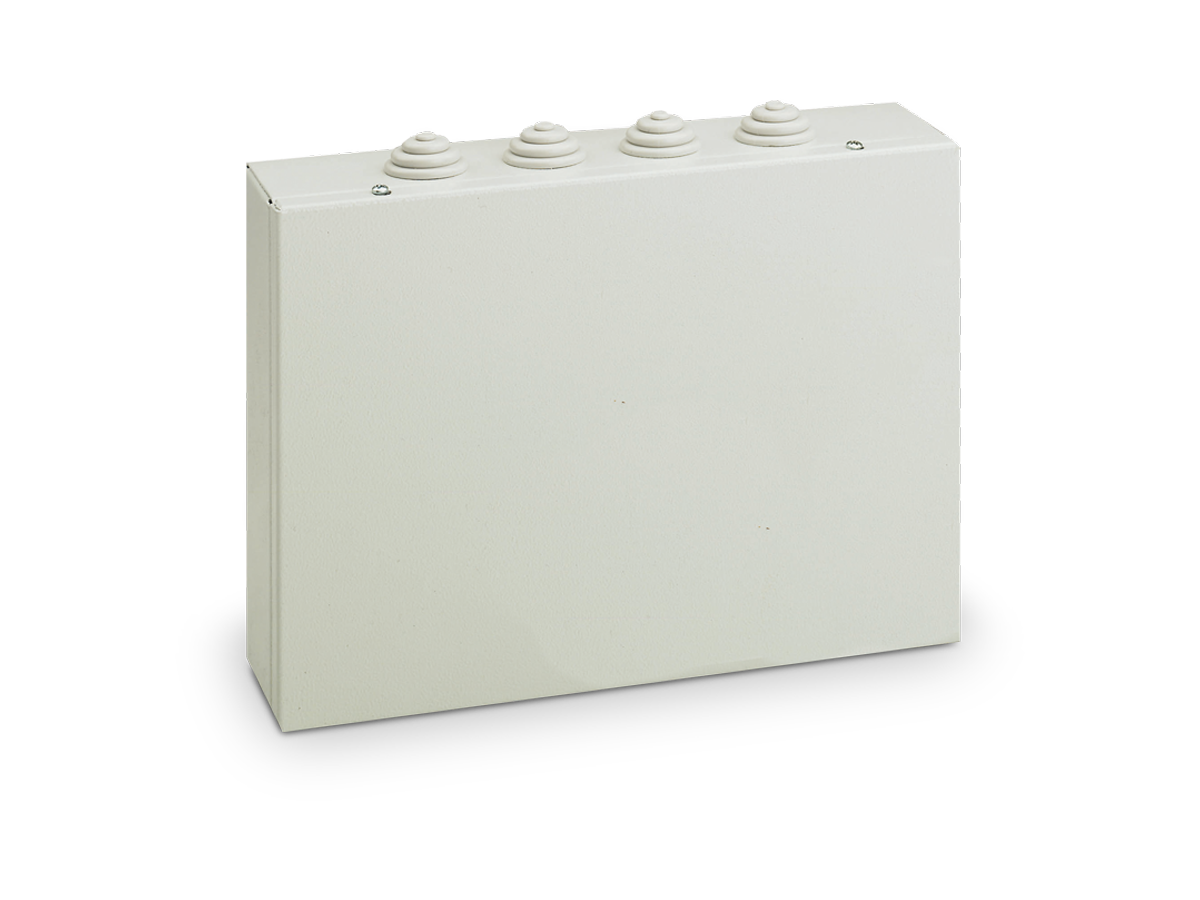

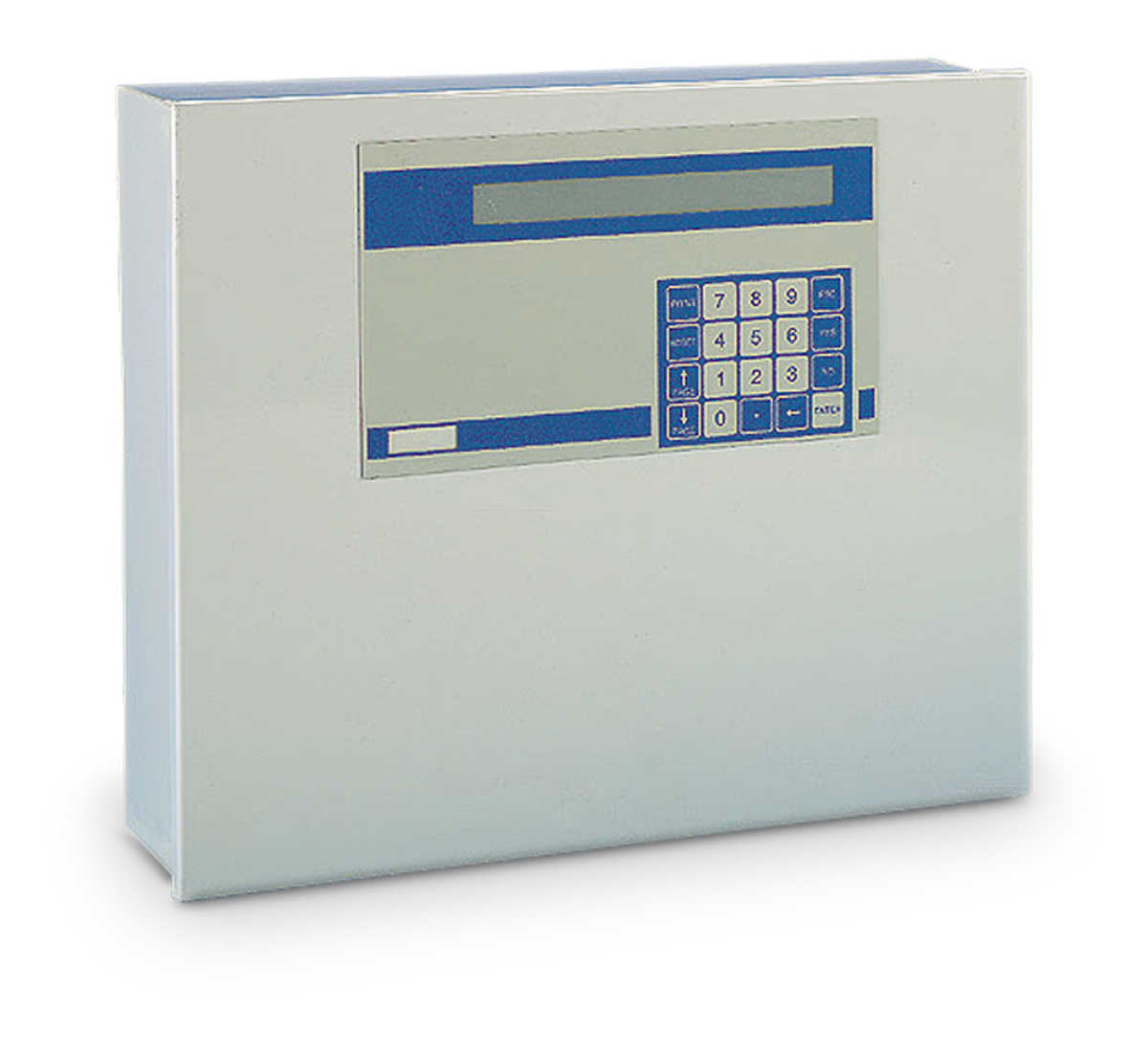

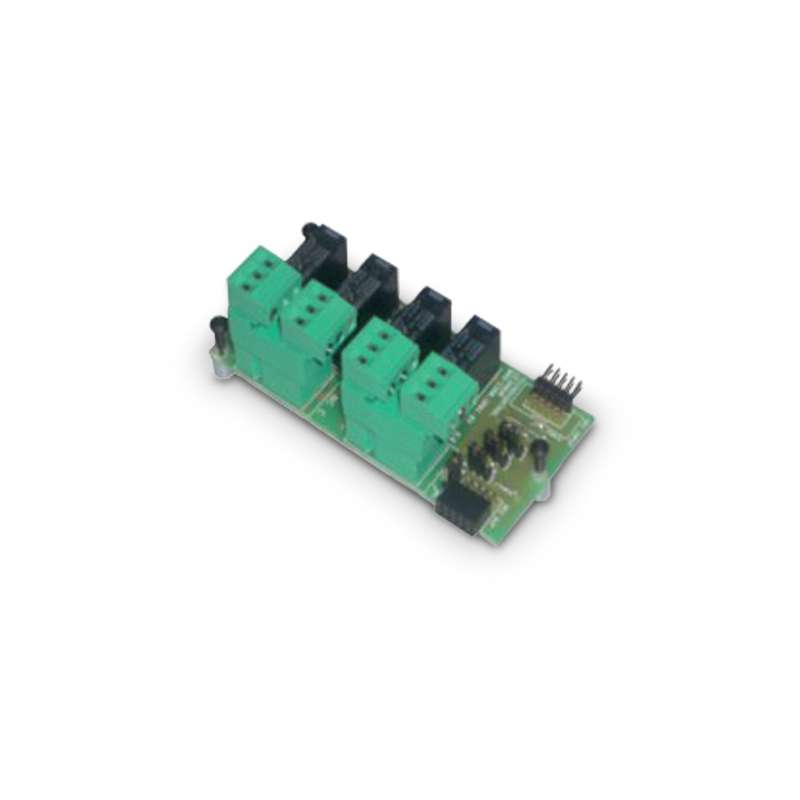

The CE700P is an analog gas detection control panel suitable for large industrial plants. It is designed to operate in conjunction with the optional CE380UR remote units, capable of managing up to 8 sensors each. Up to 23 CE380UR remote units can be connected to the CE700P for a total of 184 4-20 mA detectors. If necessary, the number of relay outputs can be increased to 184 (by combining an ES380UR module with each CE380UR unit). The backlit graphic display on the front allows real-time readings of all connected gas detectors. The front keypad allows for easy local use and programming of the control panel, made simple by the guided system and the pre-configuration of the detectors. The control panel is compatible with all TS and SE series sensors.
Features
| Maximum number of sensors | 8 |
Technical details
| Versions |
Default
G3CE00000200
|
| Connections | On a single RS‑485 serial line (max. length 1 km) |
| Displays | 40 × 2 character display, management and programming keyboard |
| Inputs | 184 freely programmable |
| Dimensions | L 365 × H 105 × D 305 mm |
| Weight | 2.50 kg |
| Power supply | 230 Vac |
| Power consumption | 10 VA at 230 Vac |
| Connectable battery | Possibility to allocate 1 battery of 12 Vdc / 7 Ah |
