Hardwired Intrusion Detection

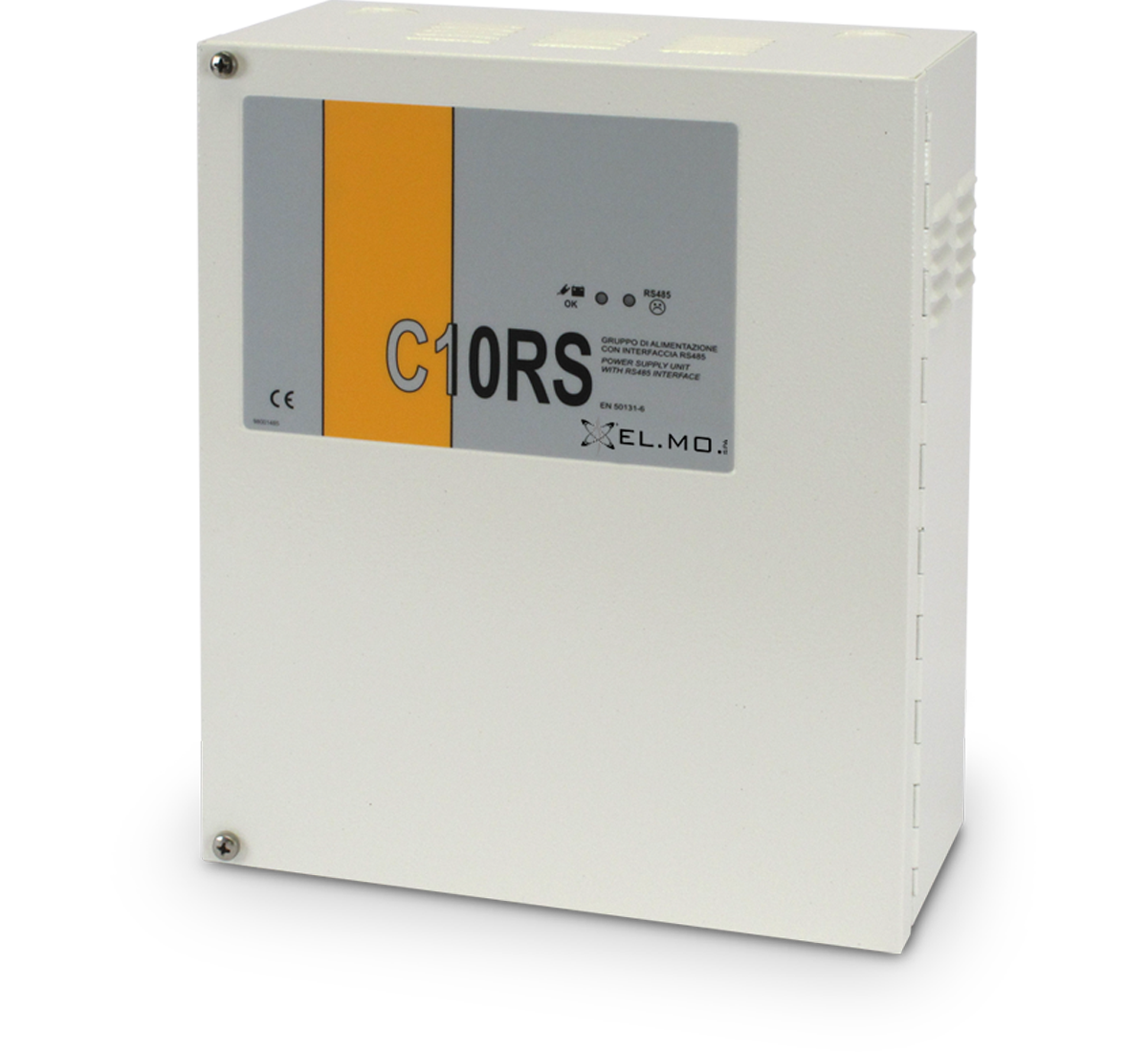

C10RS
Supervised power supply unit 13.8 Vdc / 3 A with RS‑485 ULTRABUS interface
Switching power supply units 13.8 Vdc / 3 A on RS-485 bus. Switching power supply in a 13.6 V metal container capable of supplying 3 A of current. Max. connectable battery: 1 × 12 V 17 Ah. Microprocessor management with RS-485 serial interface on ETR type bus for connection to control units. - Configuration: via dip switch (standalone mode) / BrowserOne (supervised mode). Dimensions L 260 × H 305 × D 125 mm. Certification: IMQ‑Security Systems EN 50131‑6 grade 2, environmental class II
Technical details
| Versions |
Default
GAGRA0001500
-
GAGRA0000100
-
GAGRA0000900
|
| Compatibility | VIDOMO2K, PREGIO, SUPERIA, PROXIMA |
| Power supply | 230 Vac from 13.6 V switching power supply |
| Current supplied | Max 3 A |
| Outputs | 1 LOAD 12 V output |
| 1 output for siren reference | |
| 1 output for siren battery charging | |
| Connectable battery | Up to 18 Ah |
| Configuration | Via dip switch (standalone mode) |
| BrowserOne (supervised mode) | |
| Reports | Front LEDs, BrowserOne page |
| Operating temperatures | −10 / +55 °C |
| Dimensions | L 260 × H 305 × D 125 mm |
| Weight | 3.05 kg |
| Certifications | IMQ‑Safety Systems EN 50131‑6, EN 50131‑1 grade 2, environmental class II |
