Hardwired Intrusion Detection
BLADE
Dual-technology wall-mounted detector with curtain coverage, 4 m range

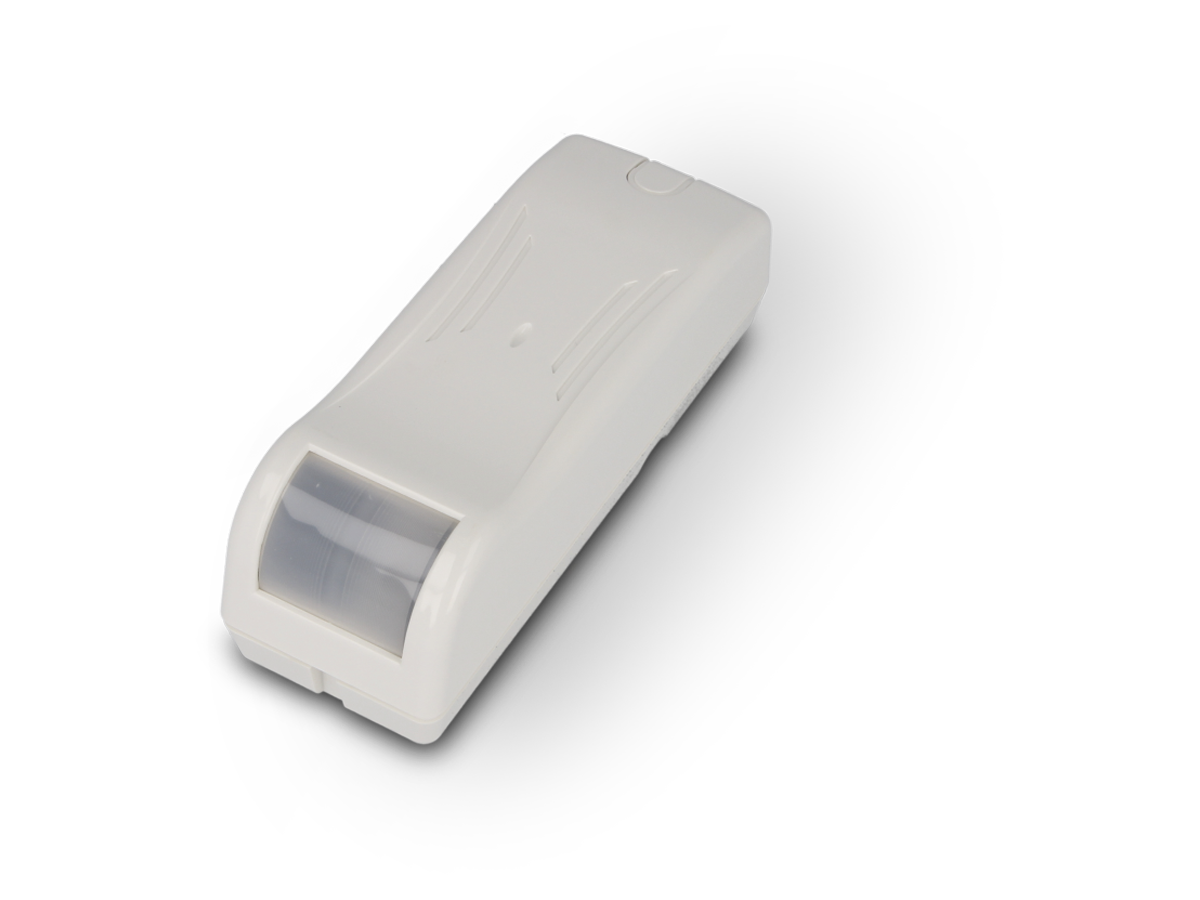

BLADE is a high-performance, wired, dual-technology (MW + IR) volumetric detector with curtain protection and a range of 4 m. It offers compact dimensions and a low profile. Depending on your needs, the detector can be mounted vertically or horizontally, between the shutter and the window/door. The vertical IR beam angle of just 15° ensures maximum precision, reducing the risk of false alarms by covering the actual areas to be protected without extending the beams to surrounding areas. BLADE uses a digital passive infrared sensor and a 24 GHz microwave section equipped with a small DRO planar antenna. The sensor is also equipped with an active anti-masking and double masking device (DAM).
Features
| Color | White |
| Connection | Wired |
| Application | On fixtures |
| Installation | Internal |
| Technology | MW+IR |
| Line | Blade |
Technical details
| Versions |
Default
RCRDTMP09900
-
RCRDTMP01000
|
| Technology | MW + IR |
| Compatibility | EL. MO. and third-party intrusion control panels |
| Use | Between windows/doors and shutters/blinds |
| Installation | Vertical on the upright or horizontal on the architrave |
| Detection range | Max 4 m |
| MW coverage area | 30° on the horizontal plane, 80° on the vertical plane |
| Number of IR sensitive zones | 2 beams |
| IR coverage area | Vertical curtain with 15° opening |
| Functions | Double anti-masking DAM (Double Anti Mask), anti-blinding, DNR functions |
| Connections | Alarm relay, masking/fault relay, 24H output |
| Dimensions | L 35 × H 96 × D 34 mm |
| Weight | 68 g |
| Color | White (BLADE) |
| Brown (BLADEM) | |
| Power supply | 12 Vdc (7 to 15 Vdc) |
| Power supply voltage absorption | At rest 19 mA |
| In alarm 40 mA | |
| Certifications | IMQ‑Security Systems EN 50131‑2-4 grade 2, environmental class II |
