Hardwired Intrusion Detection
ANIMAB
ANIMA keyboard in white color
ANIMAB is the new capacitive touchpad keypad from EL.MO. that can completely control your intrusion detection system with a simple touch. Its glossy, uniform white design comes to life simply by approaching a hand: the keypad immediately appears operational and ready for use. ANIMAB offers a minimal and elegant design, and the CapSense touchpad allows for an immediate and easy interactive experience. The customizable menu allows for direct interaction with the control panel through simple programming steps, and the integrated proximity key reader makes arming and disarming the intrusion detection system easy. The flush-mounting option (optional) is made more elegant by a glossy frame. ANIMAB offers tamper protection against opening and removal.
Features
| Keys | Touch |
| Connection | RS-485 |
Technical details
| Versions |
Default
OCTAS0102500
-
OCTAS0102000
-
OCTAS0102001
-
OCTAS0102004
-
OCTAS0102005
|
| Communication interface | RS‑485 ULTRABUS |
| Compatibility | VIDOMO2K, PREGIO, SUPERIA, PROXIMA series |
| Display | Backlit liquid crystal display |
| CapSense touchpad technology | |
| Functions | Customizable menu |
| Integrated proximity key reader | |
| Tamper protection against opening and removal | |

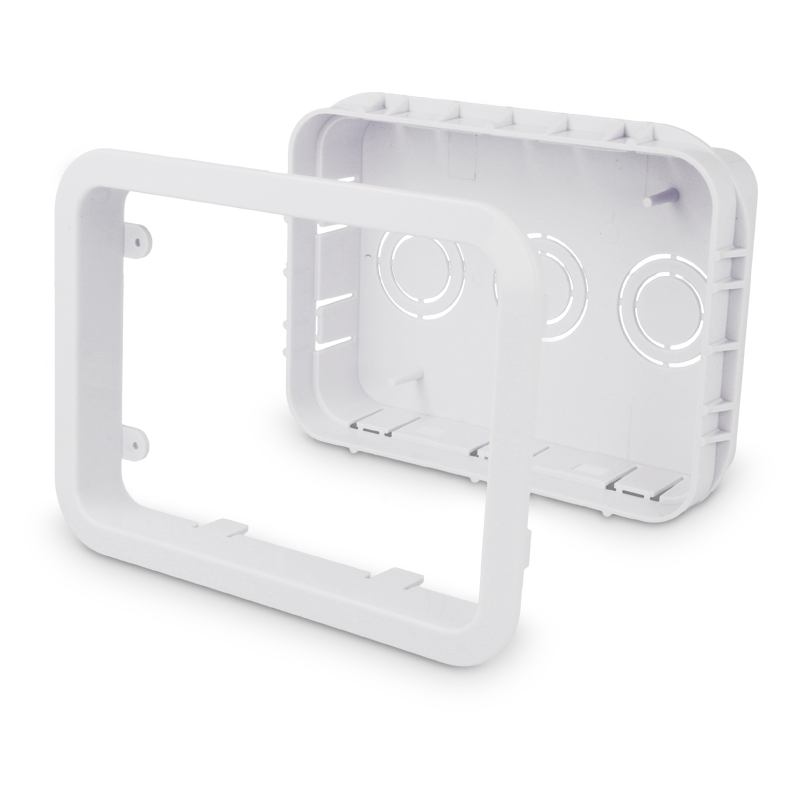

| Flush mounting with ANIMABOX (optional) | |
| 4 system partialization buttons | |
| Operating temperatures | −10 / +40 °C |
| Degree of protection | IP3X |
| Container | Black |
| Power supply | 12 Vdc |
| Power consumption at supply voltage | At rest 55 mA |
| Maximum 110 mA | |
| Color | White |
| Dimensions | L 134 × H 95 × D 10 mm |
| Weight | 160 g |
| Certifications | IMQ‑Security Systems EN 50131‑3, EN 50131‑6 grade 2‑3 based on the system in which it is inserted, environmental class II |
